Connect the stimulation lead to the IPG
1. Wipe off any body fluids from the stimulation lead connector.
2. Grasping the lead approximately 3 cm (1.2 in) from the connector end, insert the lead
connector into the IPG connector port marked STIM (Figure 17).
• Make sure the lead connector is fully inserted into the IPG connector port by verifying
that the lead connector pin reaches the back of the connector port cavity.

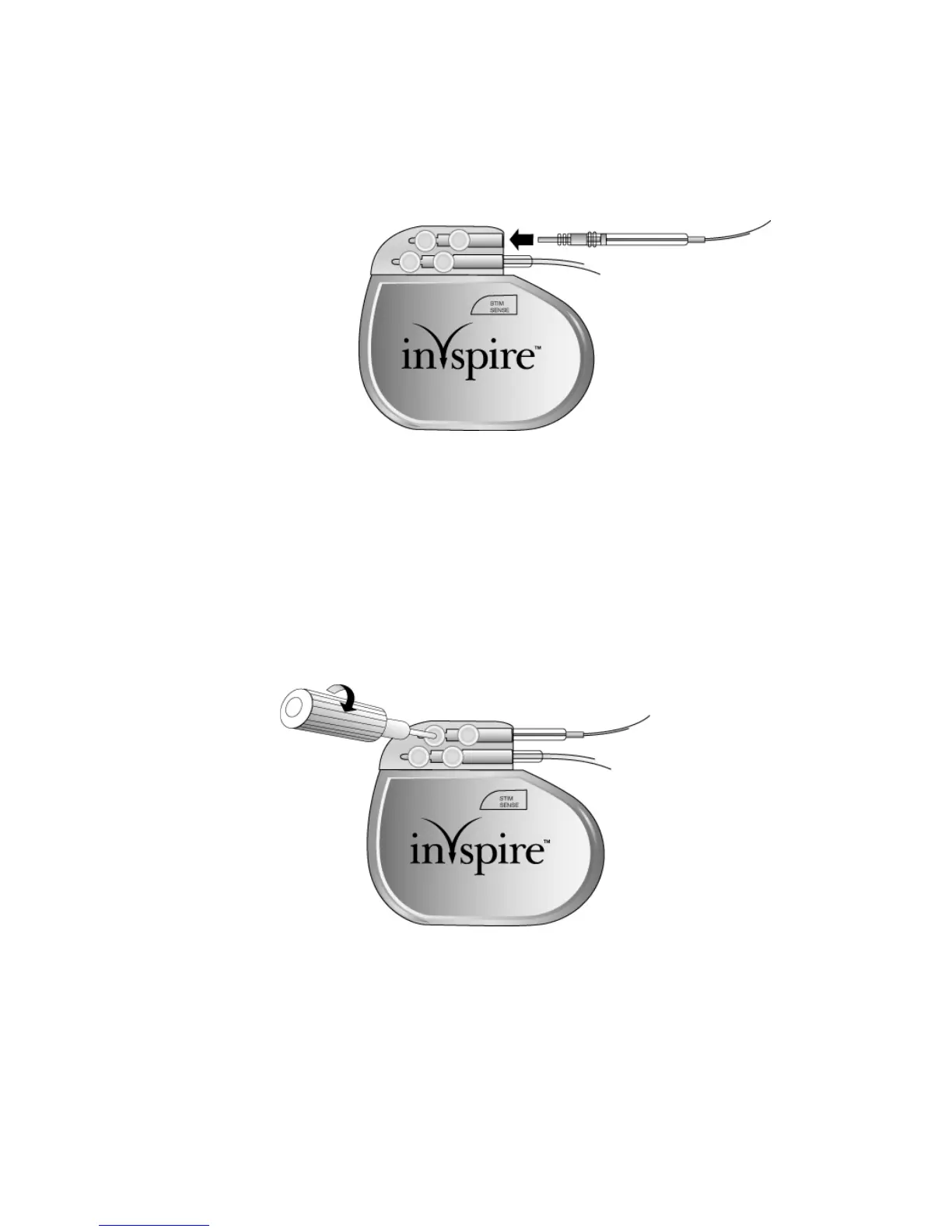

Figure 17. Insert stimulation lead connector into IPG connector port
3. Use a white-handled hex wrench to tighten the 2 setscrews adjacent to the STIM port
(Figure 18) until resistance is felt, then tighten each screw 1/4 turn more. Do not over
tighten.
• Tighten the setscrew furthest from the lead port first.
• Prior to tightening the setscrew nearest to the lead port, gently tug the lead to confirm
that the first setscrew has secured the lead in place.
• After tightening both setscrews, confirm that the seals covering the setscrews are fully
closed.
Figure 18. Tighten the two upper setscrews
