Physical Description
Radiopaque identification

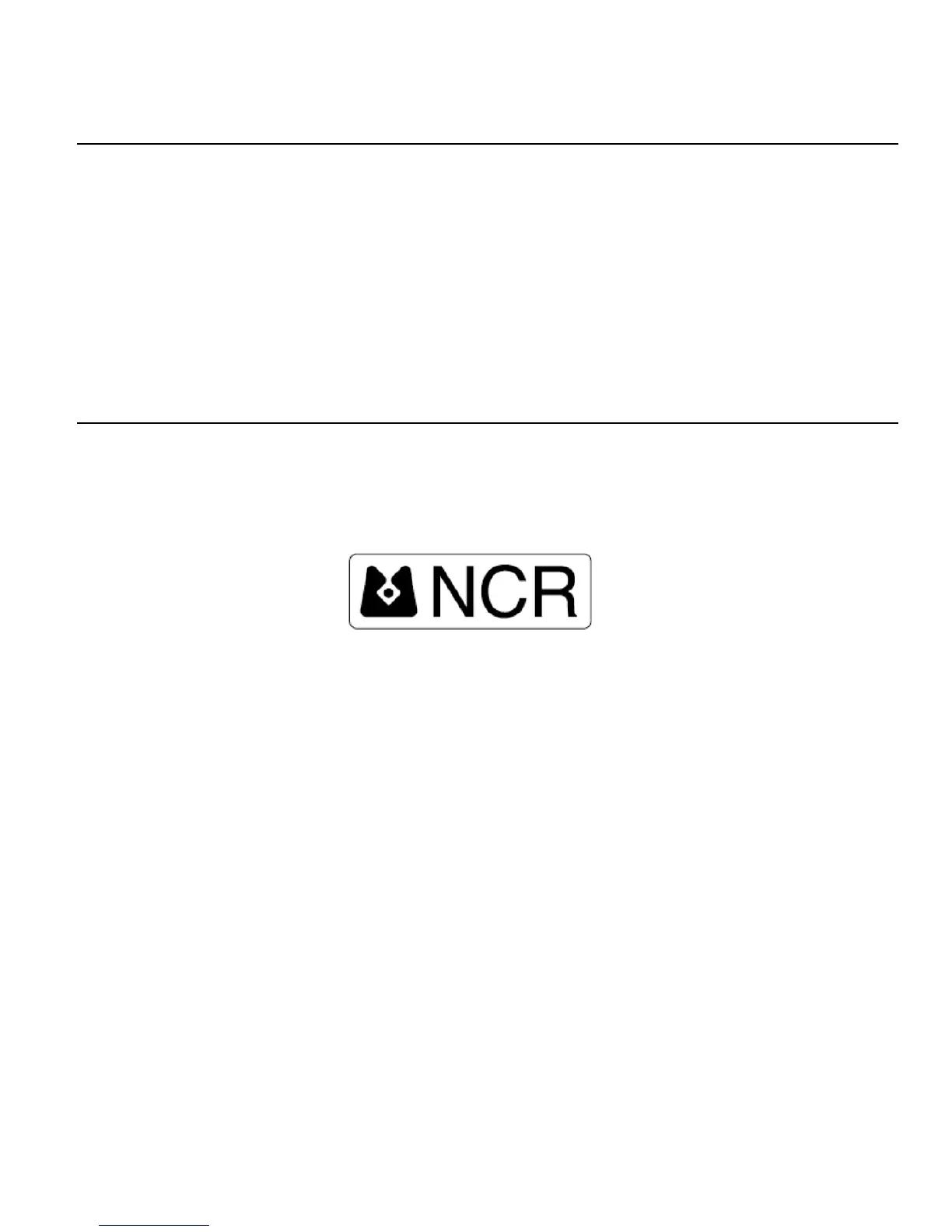

The IPG's radiopaque identification, NCR (Figure 21), can be confirmed by using fluoroscopy
on the IPG.
Figure 21. Radiopaque identification
Table 12. Inspire II IPG (Model 3024)
Physical Description
Description Value
Height 52 mm (2 in)
Length 60 mm (2.4 in)
Thickness 10 mm (0.4 in)
Volume 23 cm
3
(1.66 in
3
)
Mass 49 g (2 oz)
Radiopaque identification NCR
Tissue contacting materials Titanium, polyurethane, silicone rubber,
parylene coating
