Inspire ignite User Manual

INTRODUCTION
The Ignite Sma Sensor will detect temperature, motion and
humidity to help improve the efficiency of your heating. This
will link into an existing Ignite Heating System.
The Sma Sensor should not be installed in areas subject to
extended periods of high humidity, e.g. bathrooms
SPECIFICATIONS
Power Supply:
2 x AAA Alkaline Baeries
Temperature Range:
0-40°C
Humidity Range:
0-100% Rh
Motion Sensing Range:
70°@ 5 Metres - Horizontal
20° @ 5 Metres - Veical
Radio Frequency:
868 MHz
Dimensions:
68 x 68 x 23mm
3

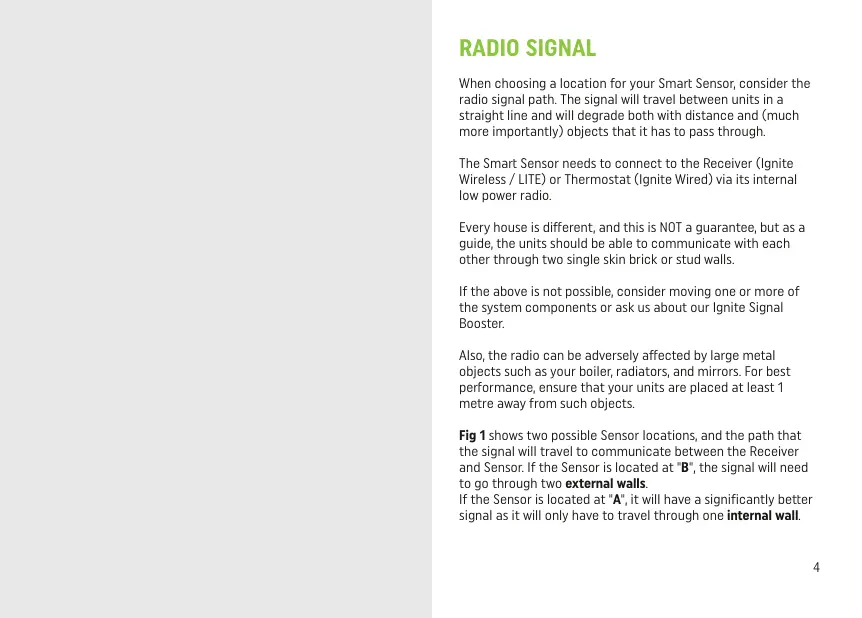

RADIO SIGNAL
When choosing a location for your Sma Sensor, consider the
radio signal path. The signal will travel between units in a
straight line and will degrade both with distance and (much
more impoantly) objects that it has to pass through.
The Sma Sensor needs to connect to the Receiver (Ignite
Wireless / LITE) or Thermostat (Ignite Wired) via its internal
low power radio.
Every house is different, and this is NOT a guarantee, but as a
guide, the units should be able to communicate with each
other through two single skin brick or stud walls.
If the above is not possible, consider moving one or more of
the system components or ask us about our Ignite Signal
Booster.
Also, the radio can be adversely affected by large metal
objects such as your boiler, radiators, and mirrors. For best
peormance, ensure that your units are placed at least 1
metre away from such objects.
Fig 1 shows two possible Sensor locations, and the path that
the signal will travel to communicate between the Receiver
and Sensor. If the Sensor is located at "B", the signal will need
to go through two external walls.
If the Sensor is located at "A", it will have a significantly beer
signal as it will only have to travel through one internal wall.
4
