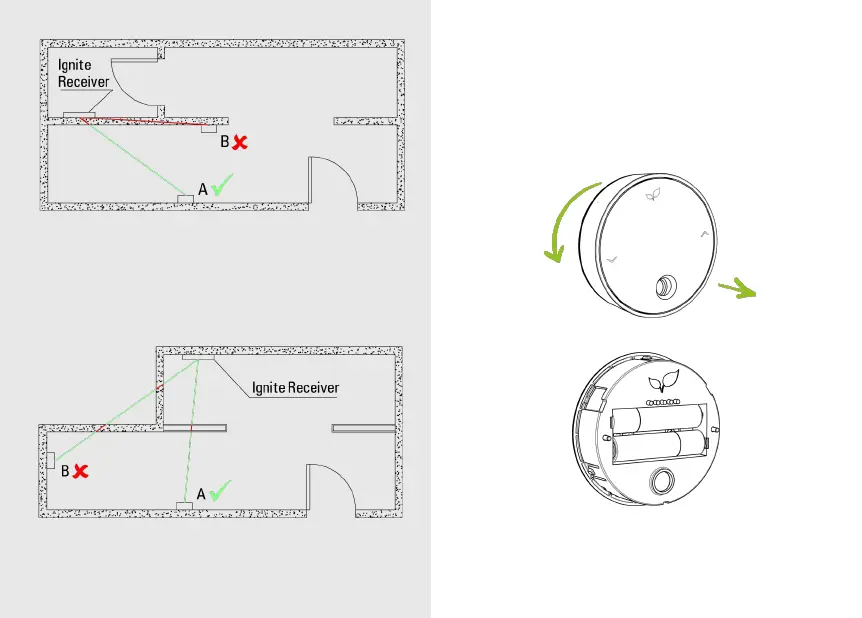

Fig 2 shows another two possible positions. The Sensor located
at "B" will have the signal travelling entirely through a solid
wall. This will create a very poor signal, or no signal at all.
When moved to position "A" the signal will be considerably
stronger.
5
Fig 1
Fig 2
BATTERY INSTALLATION
We recommend that you pair the Sma Sensor with your
Ignite System prior to fixing it to the wall.
1. Whilst holding the back plate, rotate the outer cover
anticlockwise and remove in direction shown below
2. fit supplied baeries.
3. Secure outer cover by following Step 1 in reverse.
6
Fig 3
Fig 4
