LCR-800 Series User Manual
32
z Judgment Complete Signal
/O_EOM: This signal becomes active (low level) when the measurement
and comparator judgment are completed, and all handler
interface output are stable. It will go the high level when next
trigger Signal (/I_E_TRIG) becomes active (low edge).
LCR-800 Series User Manual
33

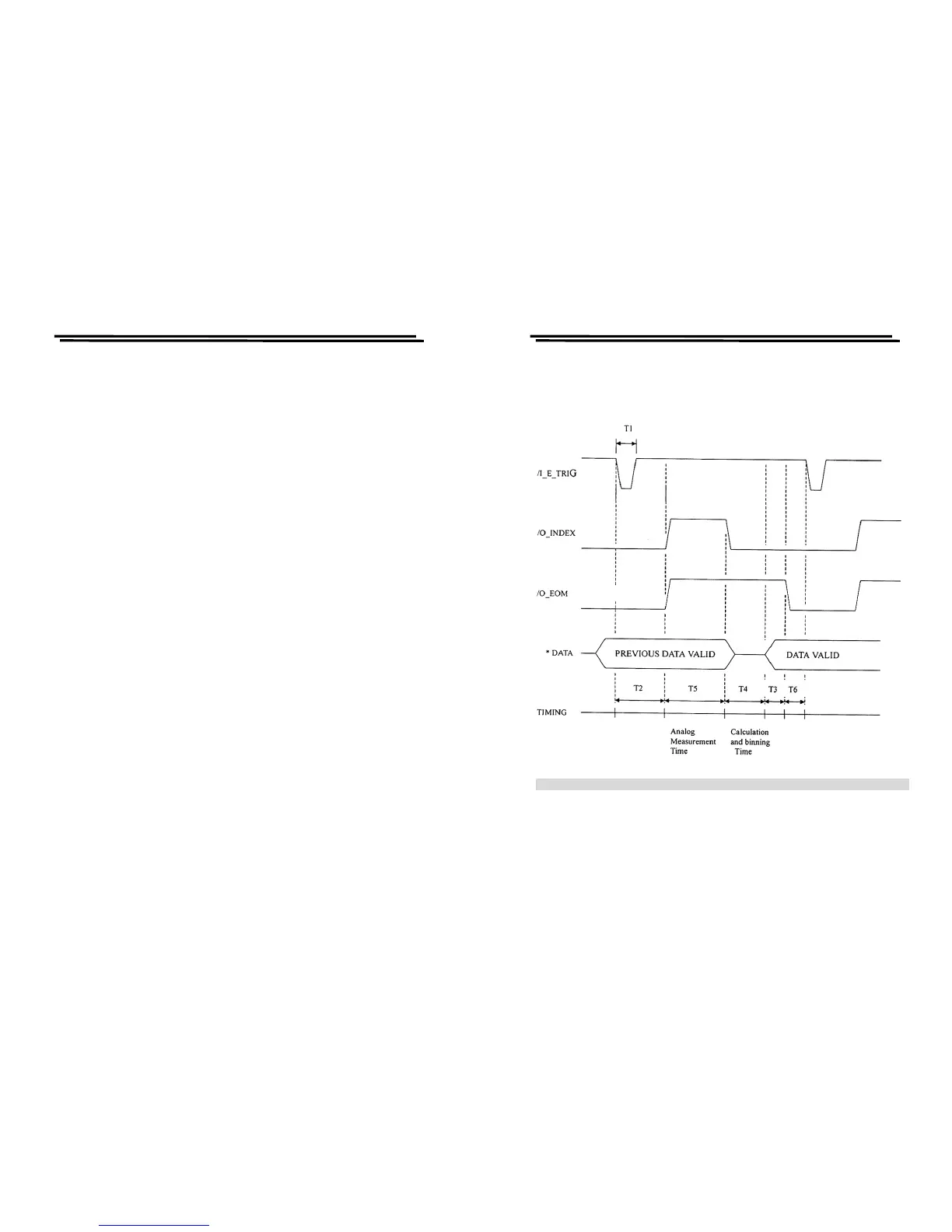

4-5-10. Handler Interface Timing (only for LCR-826/827/829)
* DATA: /O_BIN_1-_BIN_13,/O_P_OVER,/O_S_OVER,/O_S_REJ,/O_P_HI,/O_P_LO
To Next Page
