Instron 2716-010 - Page 20

Chapter: Specifications
20 M10-14052-EN

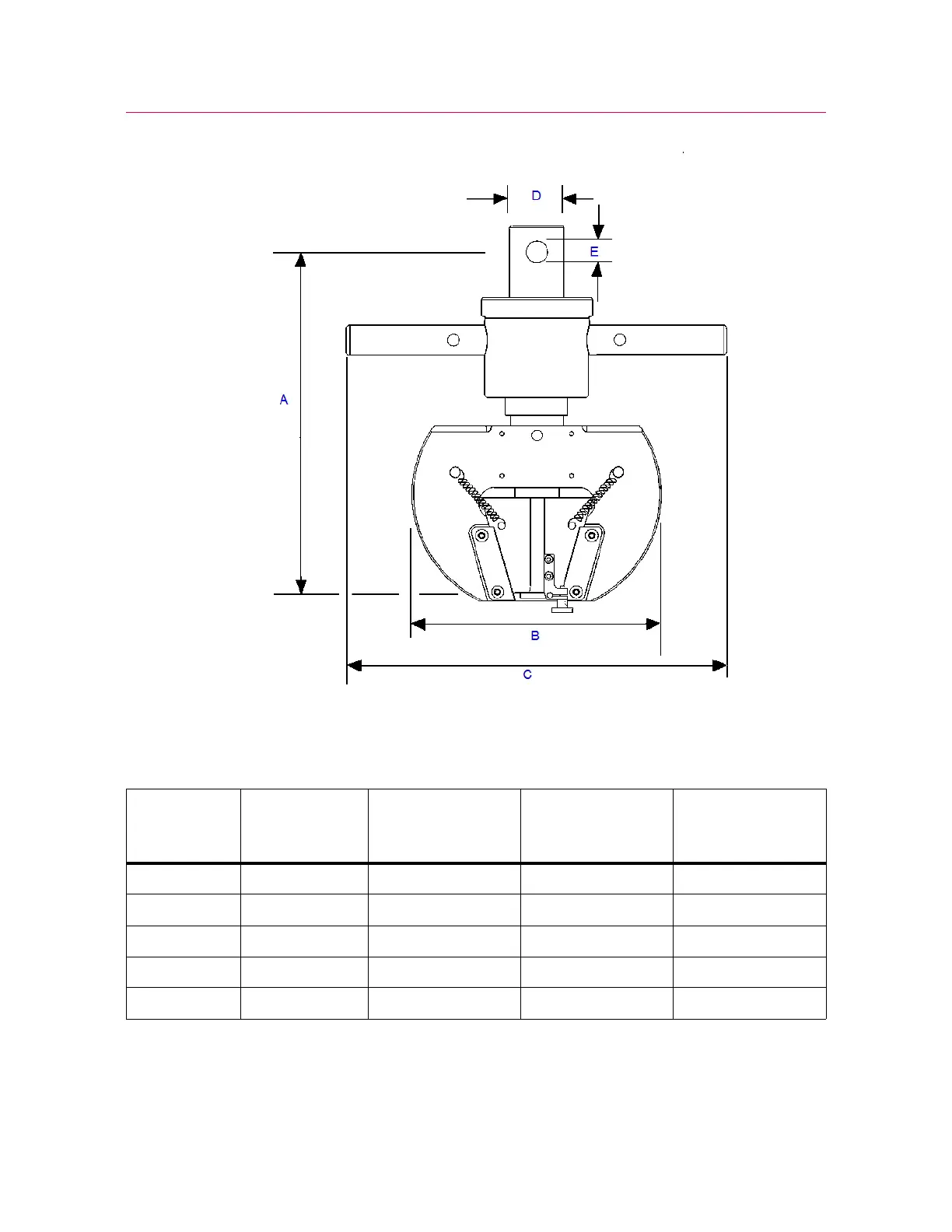

Figure 4. Dimensions
Table 1. Dimensions
Designation Measurement
2716-010
(5 kN)
Value mm (in)
2716-015 & 2736-
015 (30 kN)
Value mm (in)
2716-020
(50 kN)
Value mm (in)
A Effective length 191 (7.50) 203 (8.00) 208.5 (8.22)
B Body width 144 (5.67) 144 (5.67) 160 (6.3)
C Overall width 178 (7.00) 220 (8.66) 220 (8.66)
D Shank diameter 31.75 (1.25) 31.75 (1.25) 31.75 (1.25)
E Shank coupling 12.7 (0.5) 12.7 (0.5) 12.7 (0.5)
