Chapter: Installation
32 M10-14052-EN

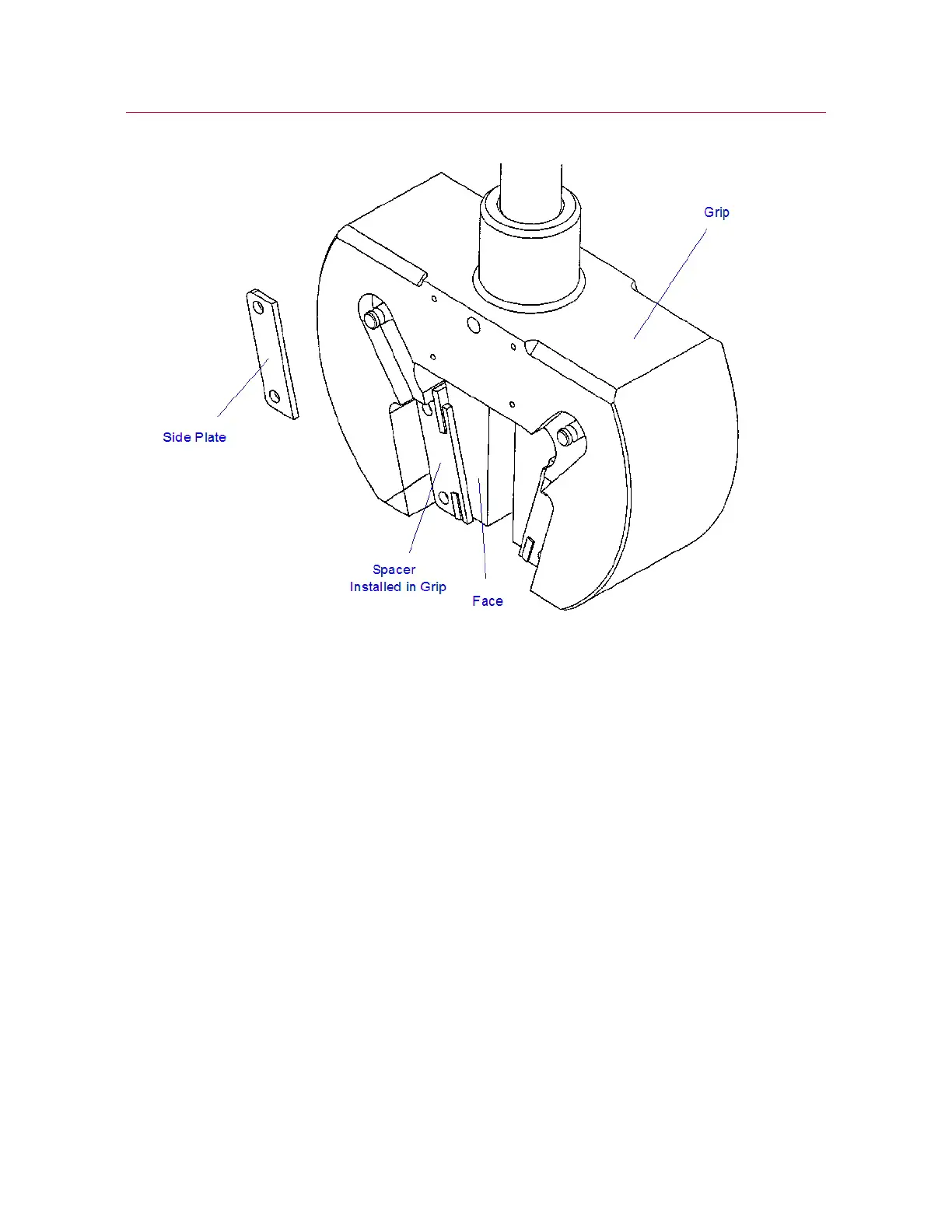

Figure 9. Installing Side Plate and Spacer
Preloading the Load String
All load string components must be rigid and not allow any backlash which could
degrade the integrity of the test results. You must preload the load string attachment
kits to eliminate backlash.
To preload the load string, you must install a specimen capable of withstanding a tensile
load 10 to 15% greater than the highest load you will be applying during your test.
Equipment
You need the following items:
• a specimen capable of withstanding a tensile load 10 to 15% greater than the
highest test load
