Chapter: Installation
26 M10-14052-EN
clevis pin couples the shank and socket together. A locknut assures that no end play
exists in the grip to load frame connection.

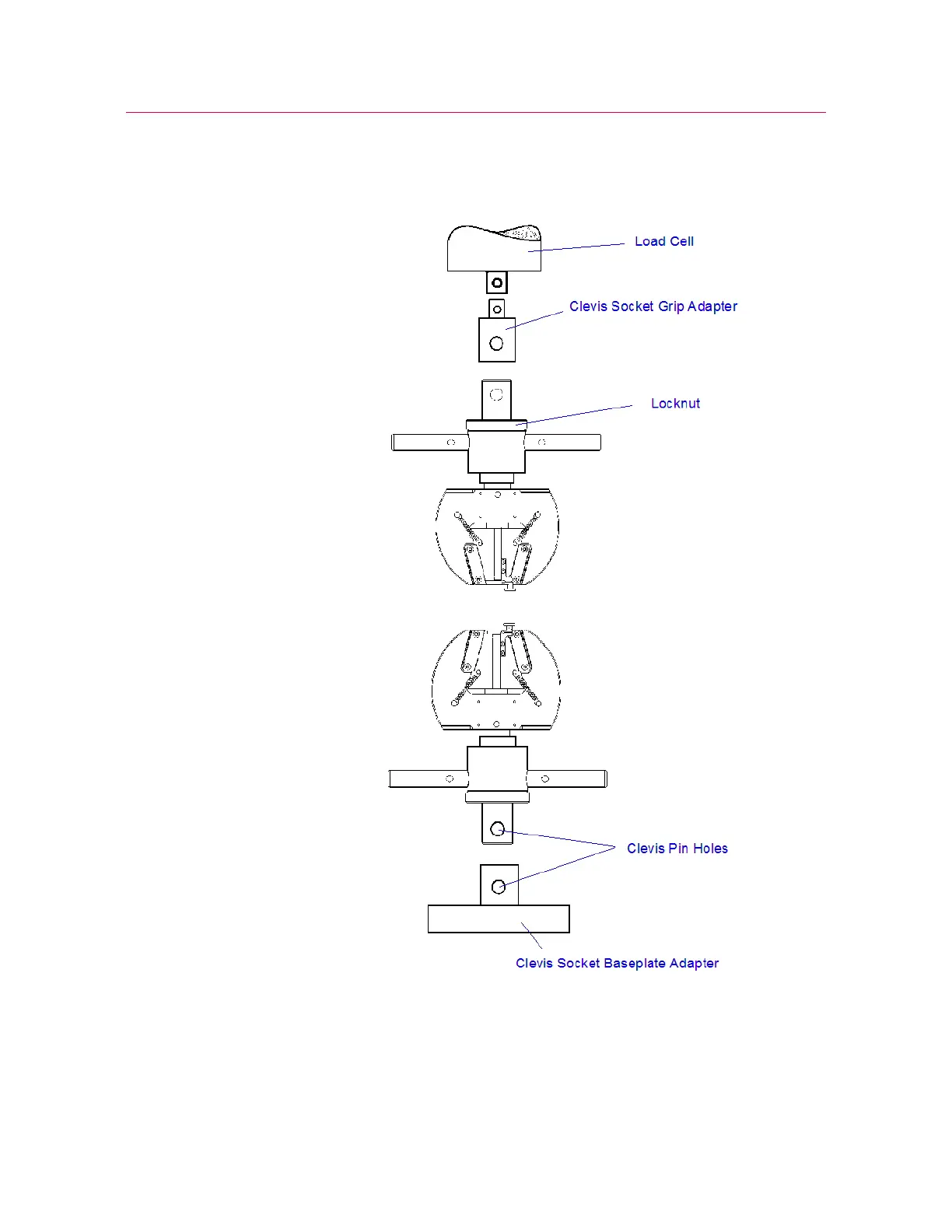

Figure 5. Clevis Pin Couplings
