3. Slowly lift the frame until it is in an upright position and is lifted off the floor.
4. Slowly move the load frame away from the shipping skid and remaining packaging
materials.
5. When the frame is clear of the packaging material, slowly lower the load frame to the
floor so that it is standing on its base in an upright position.
6. Remove the slings from the crosshead.
The frame can now be positioned into its operating location and then installed by an Instron
service representative. To position the frame into its operating location, use the crosshead
method to lift the frame. Refer to “Crosshead Method” for details.
Using a Forklift
Before You Begin
Before moving the load frame ensure that:
• The load frame is not bolted to the shipping skid.
• There are no loose accessories on the shipping skid.
Crush hazard - Ensure that all persons in the immediate area are standing away
from the frame during lifting.
Do not lift the frame more than 8 cm (3 in) off the floor.

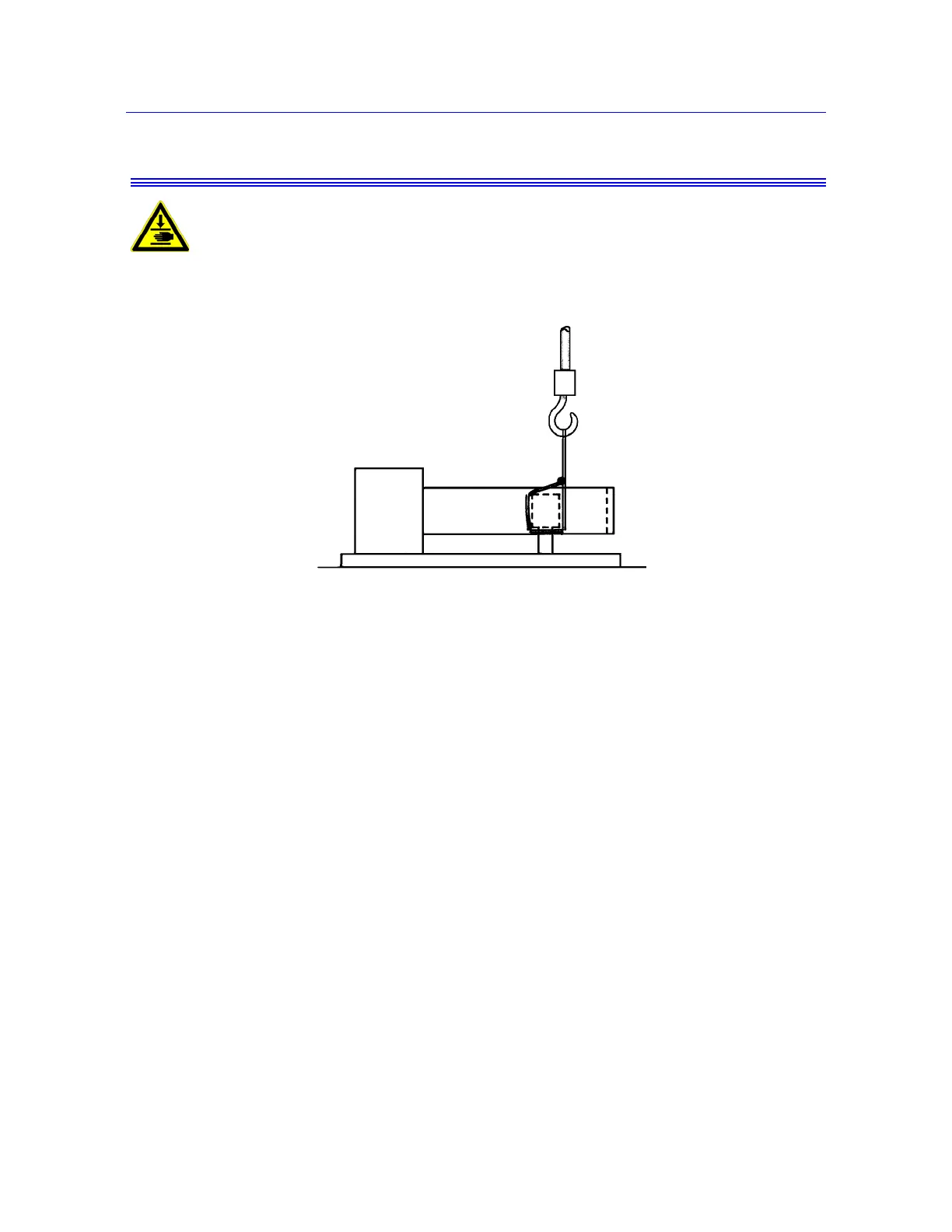

Figure 3-1. Righting a Load Frame Using a Crane
