Chapter: Requirements and Specifications
2-14 M10-16250-EN
Second Test Space Options
The second test space option lets you test in the space above the moving crosshead, as
shown in Figure 2-3 on page 2-14.
In this configuration, the top place is replaced with a fixed crosshead. Hoes are drilled in the
fixed crosshead to mount the load cell or grip adapter. The specimen is gripped between the
fixed crosshead and the top of the moving crosshead.
Figure 2-4 on page 2-15 shows the dimensions for the second test space. Refer to Table 2-
7 on page 2-15 and Table 2-8 on page 2-15 to match the letter designations.
Overall height with
optional base extension
2573 (101.3) 3073 (121) 2573 (101.3) 3073 (121)
Overall width G 1130 (44.5) 1130 (44.5) 1489 (58.6) 1489 (58.6)
Load cell height J 170 (6.7) 170 (6.7) 170 (6.7) 170 (6.7)
Table 2-6. 5984 and 5985 with Single Test Space
Dimension - mm (in) Letter
Frame
Option
Standard
Height and
Width Extra Height Extra Wide
Extra Height
and Extra
Wide

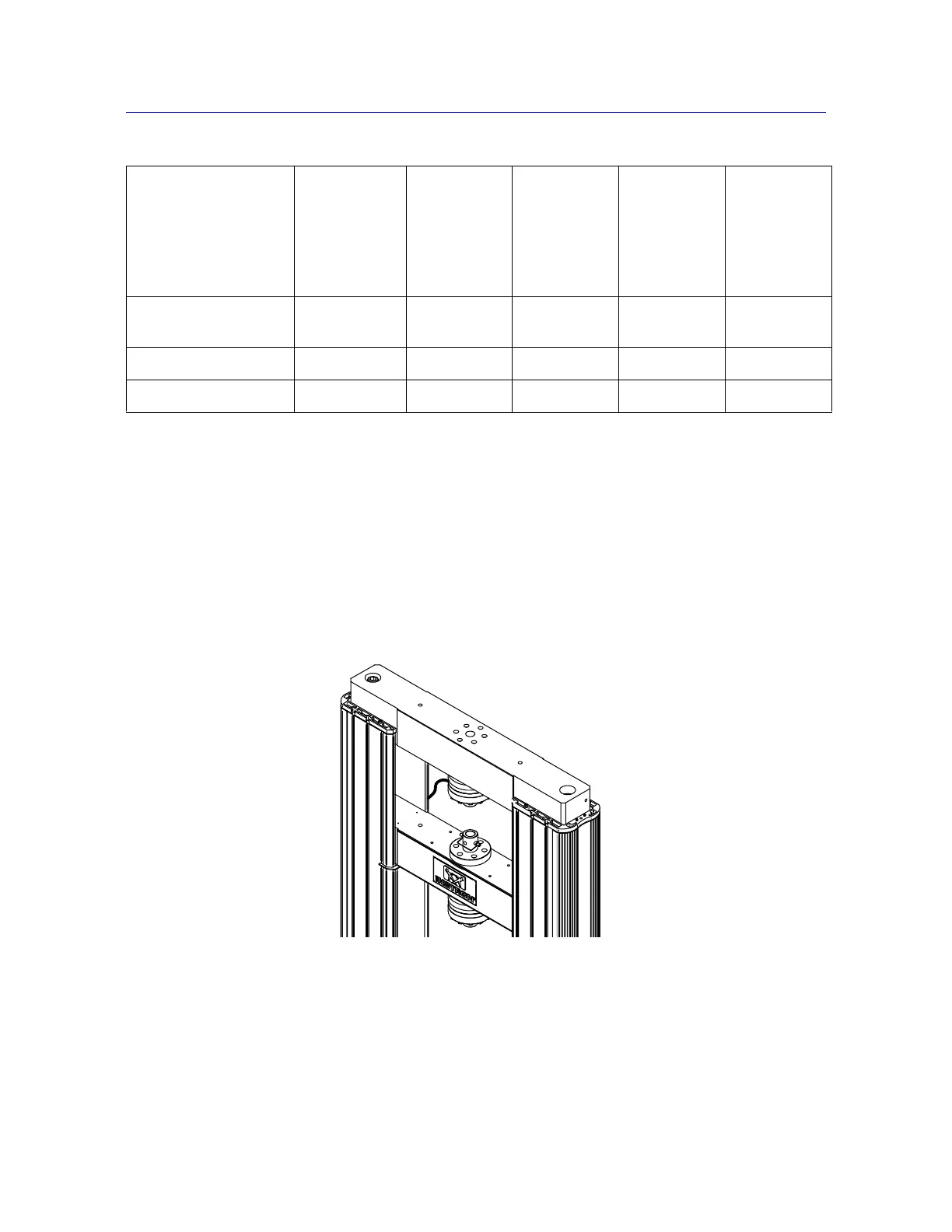

Figure 2-3. Second Test Space Configuration
