Connect the System Components
Product Support: www.instron.com

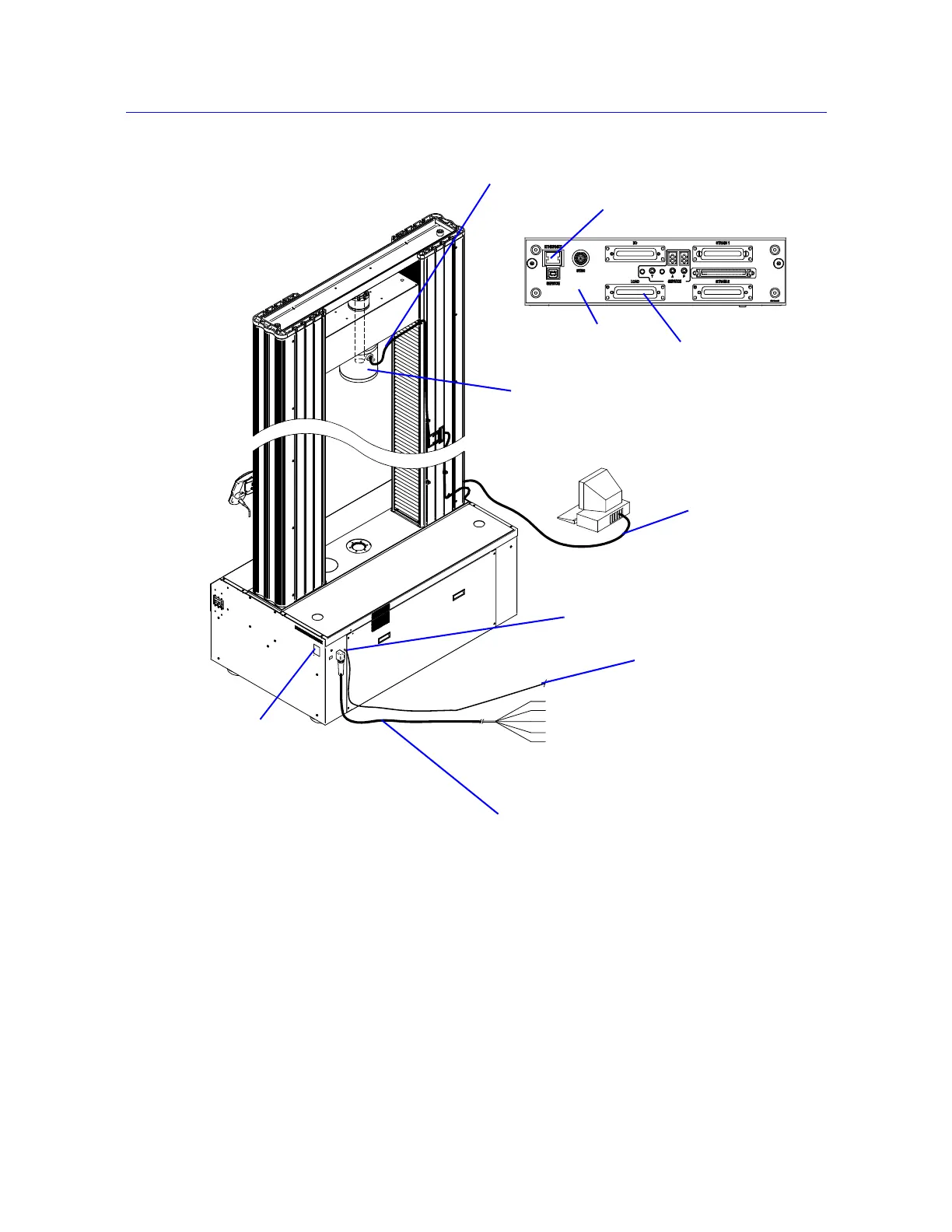

Figure 4-5. 5988 and 5989 System Connections
BLACK - Live 1
BLACK - Live 2
BLACK - Live 3
BLACK - Neutral
GRN/YEL - Earth
Ground stud
Load cell
Controller
Supplemental ground
cable
Computer interface
connection
Load cell cable
Mains power cable
Ethernet
crossover cable
System ID
label
Load cell connection
