Transporting Dual Column Frames
Product Support: www.instron.com
Crosshead Method
This method requires protective padding on either the crosshead or forklift arms to protect
the crosshead from scratching or marring.
This method can be used to:
• Transport the load frame to the site location.
• Lift a tabletop load frame onto a table or workbench.
• Lift the frame to remove the transport skid from the frame’s base and to insert the
leveling feet.
To transport the load frame using the crosshead method:
1. Ensure that there are no shipping bolts attached to the skid.
2. Using a forklift with padded forks or protective material around the crosshead, carefully
insert the forks under the crosshead between the columns. Refer to Figure 3-3 on
page 3-11.
3. Slowly and carefully lift the frame off the floor.

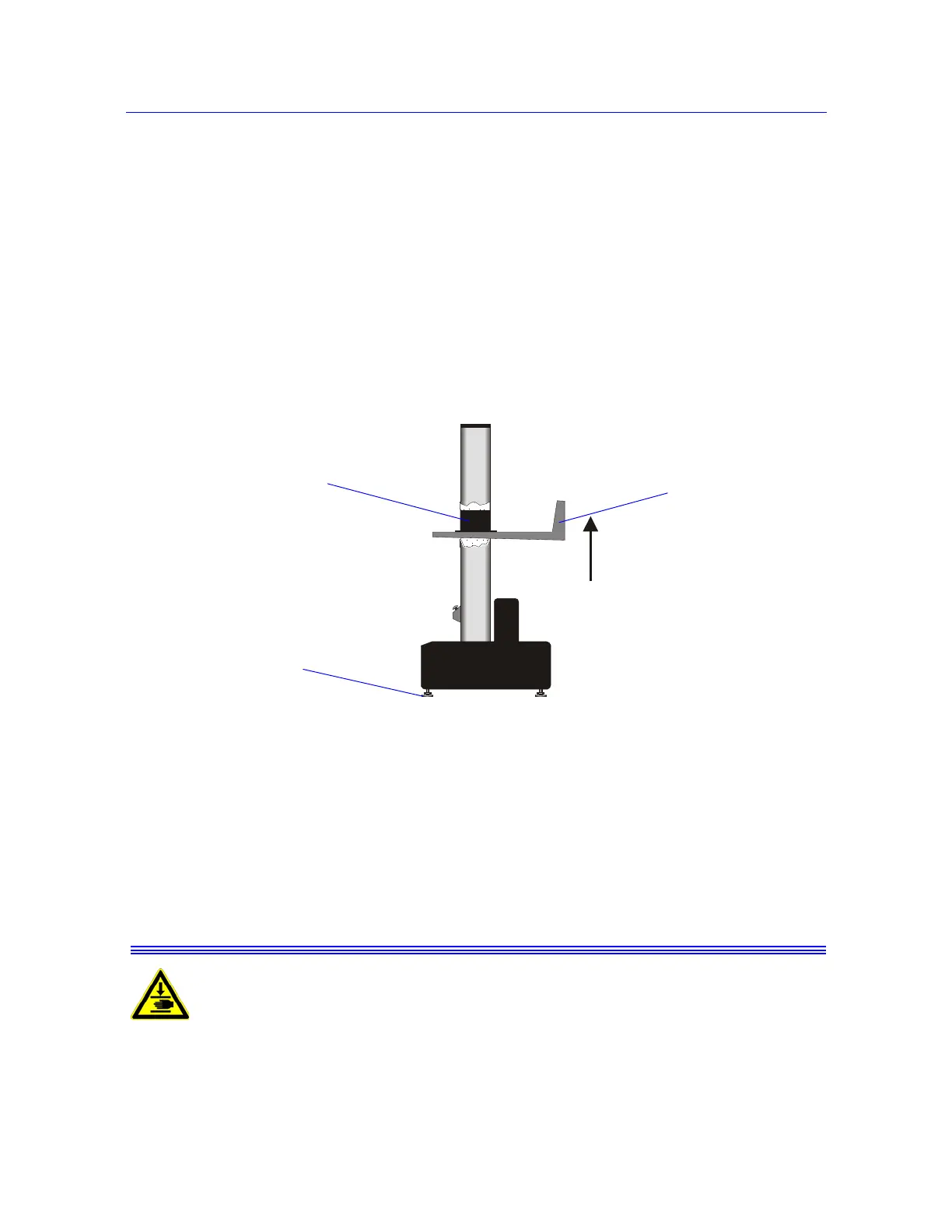

Figure 3-3. Lifting the Frame from the Crosshead
Leveling feet
Crosshead
Forklift arm
Crush hazard - Ensure that all persons in the immediate area are standing away
from the frame during lifting.
Do not lift the frame more than 8 cm (3 in) off the floor.
