En-7
Getting to Know the Receiver
North American model
Oceanian model

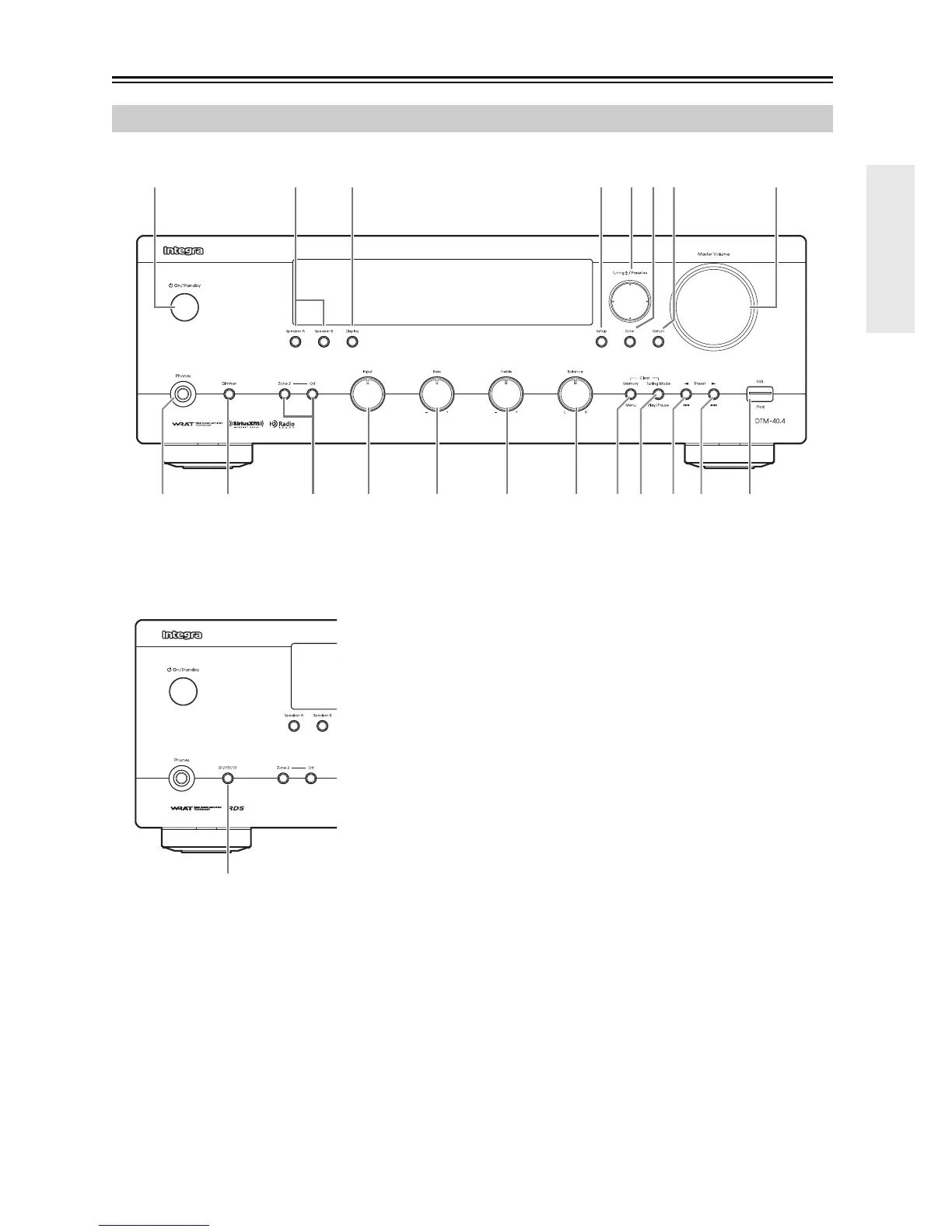

For detailed information, see the pages in parentheses.
a On/Standby button (18, 46, 52)
b Speaker A and B switches (19)
c Display button (25)
d Setup button (12, 40, 45)
e Tuning /, Preset /buttons (23, 24, 27,
40)
f Enter button (27)
g Return button (40)
h Master Volume control (19)
i Phones jack (19)
j
Dimmer button (North American model) (20)
k Zone 2, Off buttons (45)
l Input selector (19, 22, 23, 27, 45)
m Bass control (20)
n Treble control (20)
o Balance control (20)
p Memory/Menu button (24)
q Tuning Mode/ / button (23, 24, 52)
r Preset / button (24)
s Preset / button (24)
t USB, iPod port (28)
u RT/PTY/TP button (Oceanian model) (27)
Other than North American model, this is the RT/
PTY/TP button, and it’s used with RDS (Radio Data
System). See “Using RDS (Oceanian model)” on
page 26.
