Integra DTM-40.4 User Manual

En-8

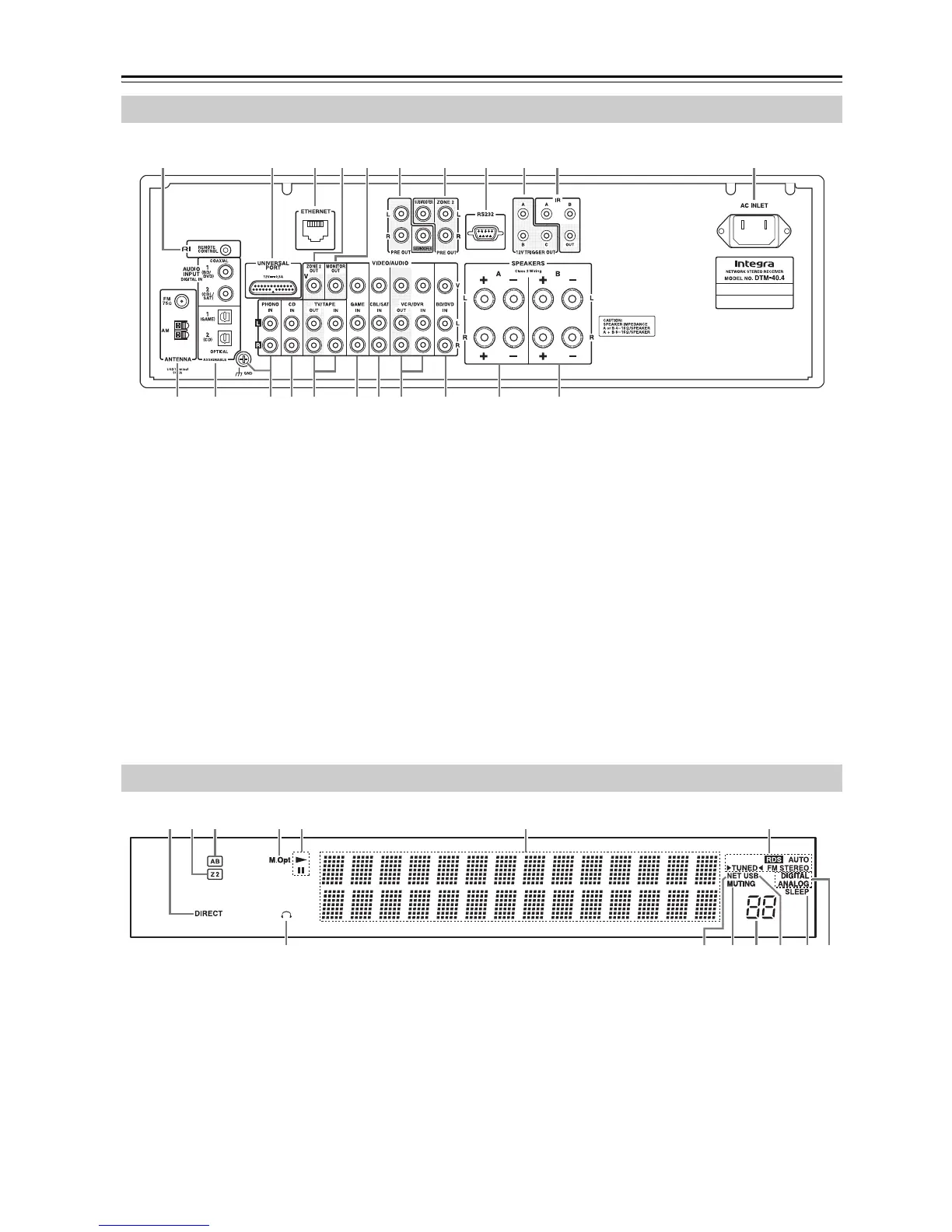

Getting to Know the Receiver—Continued
For detailed information, see the pages in parentheses.
a  REMOTE CONTROL jack (16)
b UNIVERSAL PORT jack (15)
c ETHERNET port (15)
d ZONE 2 OUT V jack (44)
e MONITOR OUT jack (15)
f PRE OUT jacks (11)
g ZONE 2 PRE OUT jacks (44)
h RS232 jack*
i 12V TRIGGER OUT jacks (41, 47)
j IR IN/OUT jacks (48)
k AC INLET (17)
l FM ANTENNA jack and AM ANTENNA
terminal (13)
m DIGITAL IN COAXIAL and OPTICAL jacks (15)
n PHONO IN (MM) and GND terminal (15)
o CD IN jacks (15)
p TV/TAPE IN/OUT jacks (15, 17)
q GAME IN jacks (15)
r CBL/SAT IN jacks (15)
s VCR/DVR IN/OUT jacks (15, 17)
t BD/DVD IN jacks (15)
u SPEAKERS A terminals (10)
v SPEAKERS B terminals (10)
See “Connecting the Receiver” for connection
( pages 10 to 17).
* Terminal for Interface Control.
For detailed information, see the pages in parentheses.
a DIRECT indicator (21)
b Z 2 (Zone 2) indicator (46)
c A/B speaker indicator (19)
d M.Opt indicator (21)
e ,  indicators
f Message area
g Tuning indicators
• RDS indicator (Oceanian model) (26)
• AUTO indicator (23)
• TUNED indicator (23)
• FM STEREO indicator (23, 52)
h Headphone indicator
i NET indicator (30, 31)
j MUTING indicator (52)
k Volume level (19)
l USB indicator (28, 29)
m SLEEP indicator (20, 42)
n Audio input indicators
Rear Panel
abc 4 5 6 7 8 j k9
l mno qr t up sv
Display
c 45 7ab
nj9 mlk8
6
