a DIGITAL IN COAXIAL and OPTICAL jacks
b COMPONENT VIDEO IN and OUT jacks
c USB port
d ETHERNET port
e FM ANTENNA jack and AM ANTENNA terminal
f HDMI IN and HDMI output (HDMI OUT MAIN and
HDMI OUT SUB) jacks
g RS232 port
Terminal for control.
h IR IN A/B and OUT jacks
i 12V TRIGGER OUT A/B/C jacks
j SPEAKERS terminals
(CENTER, FRONT, SURROUND, SURROUND
BACK or FRONT HIGH, ZONE 2)
k AC INLET
l uREMOTE CONTROL jack
m Composite video and analog audio jacks
(BD/DVD IN, CBL/SAT IN, STB/DVR IN, GAME
IN, PC IN, TV/CD IN)
n MONITOR OUT V jack
o PRE OUT jacks
(CENTER, FRONT, SURROUND, SURR BACK
or FRONT HIGH, SUBWOOFER)
p ZONE 2 and ZONE 3 PRE/LINE OUT jacks

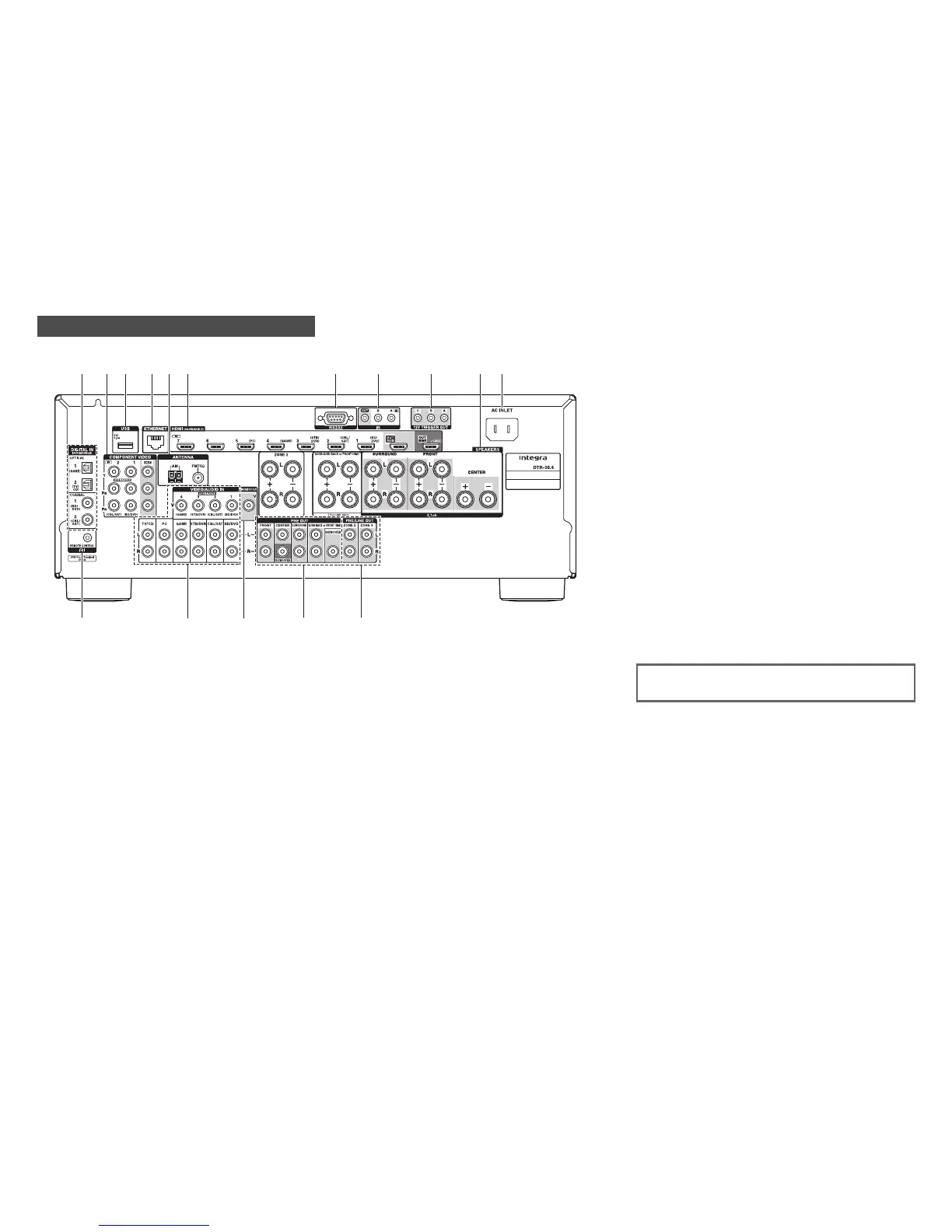

Rear Panel
a eb dc f
j
g h ik
l
m
n op
See “Connecting the AV Receiver” for connection
(➔ pages 11 to 18).
