Front & Rear Panels
For detailed information, see the pages in parentheses.
a 8On/Standby button (19)
b Hybrid Standby indicator (51)
c Tone and Tone Level buttons (48, 72)
d Remote control sensor (4)
e Display (8)
f Listening Mode buttons (37)
g Dimmer button (North American models) (45)
h Memory button (31)
i Tuning Mode button (31)
j Display button (45)
k Setup button (50)
l Tuning q/w (31), Preset e/r (31), cursor and
Enter buttons
m Return button
n Master Volume control (22)
o Zone 2/Zone 3 and Off buttons (71)
p Whole House Mode and Off buttons (46)
q Phones jack (46)
r AUX Input HDMI/MHL jack (15)
s Input selector buttons (22)
t USB port (16)
u AUX Input Video/Audio jacks (16)
v Setup Mic jack (35)
w RT/PTY/TP button (Australian models) (32)

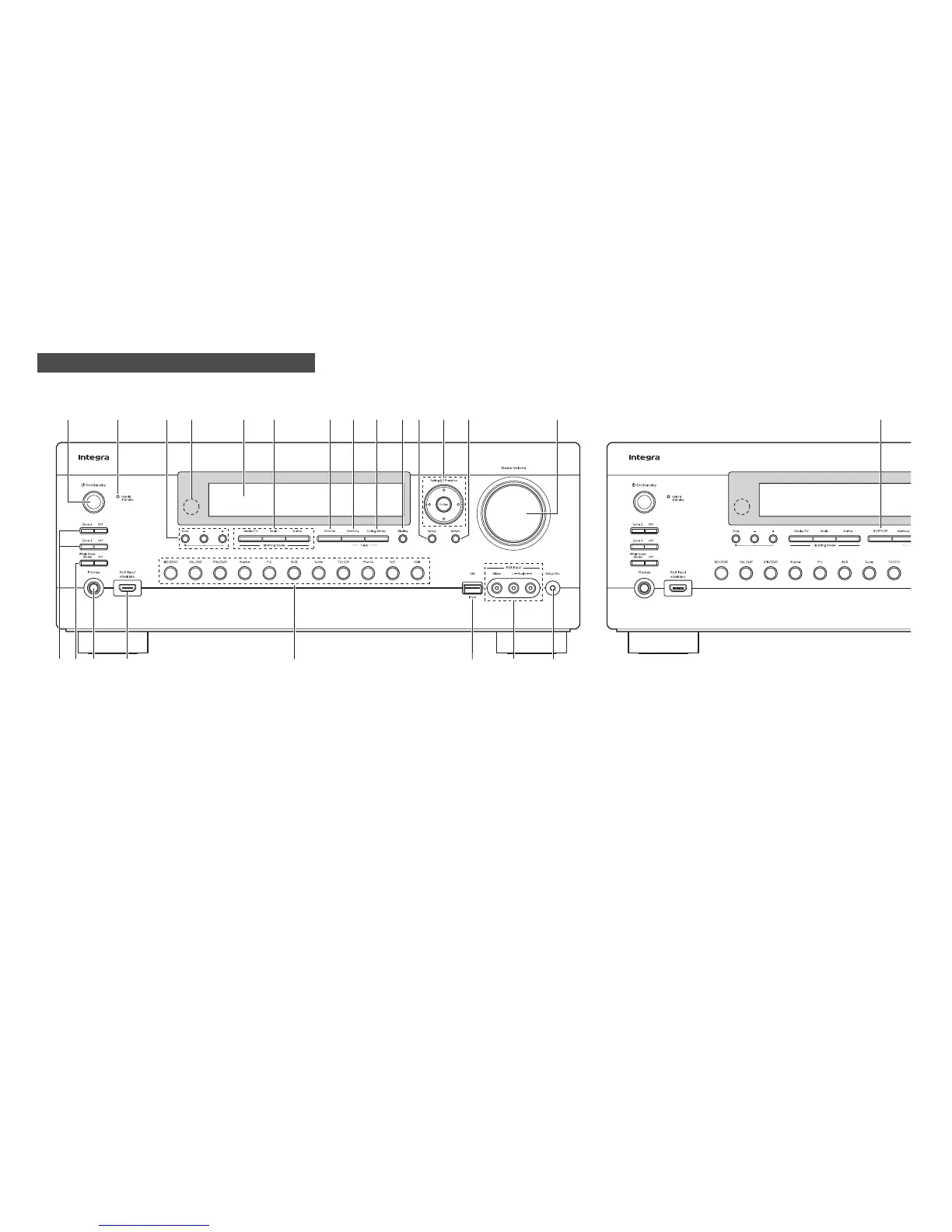

Front Panel
(North American models) (Australian models)
acedfghijlkm nb
s
t
q
rop
u
v
w
