Safety Information and Introduction
En-9
a uREMOTE CONTROL jack
b USB port
c ETHERNET port
d RS232 port
Terminal for control.
e Composite video and analog audio jacks
(BD/DVD IN, CBL/SAT IN, STB/DVR IN, GAME
IN, PC IN, TV/CD IN and PHONO IN)
f COMPONENT VIDEO IN and MONITOR OUT
jacks
g HDMI IN and HDMI output (HDMI OUT MAIN and
HDMI OUT SUB) jacks
h IR IN A/B and OUT jacks
i 12V TRIGGER OUT A/B/C jacks
j ZONE 2 OUT V jack
k ZONE 2 and ZONE 3 PRE/LINE OUT jacks
l FM ANTENNA jack and AM ANTENNA terminal
m PC IN jack
n AC INLET
o DIGITAL IN COAXIAL and OPTICAL jacks
p GND screw
q MONITOR OUT V jack
r PRE OUT jacks
(FRONT L/R, CENTER, SURR L/R,
SB/FH/FW
*
L/R, SUBWOOFER)
*
SB···Surround Back, FH···Front High, FW···Front Wide
s Speaker Terminals
(FRONT L/R, CENTER, SURR L/R,
SURR BACK L/R, FRONT HIGH/ZONE 3 L/R and
FRONT WIDE/ZONE 2 L/R)

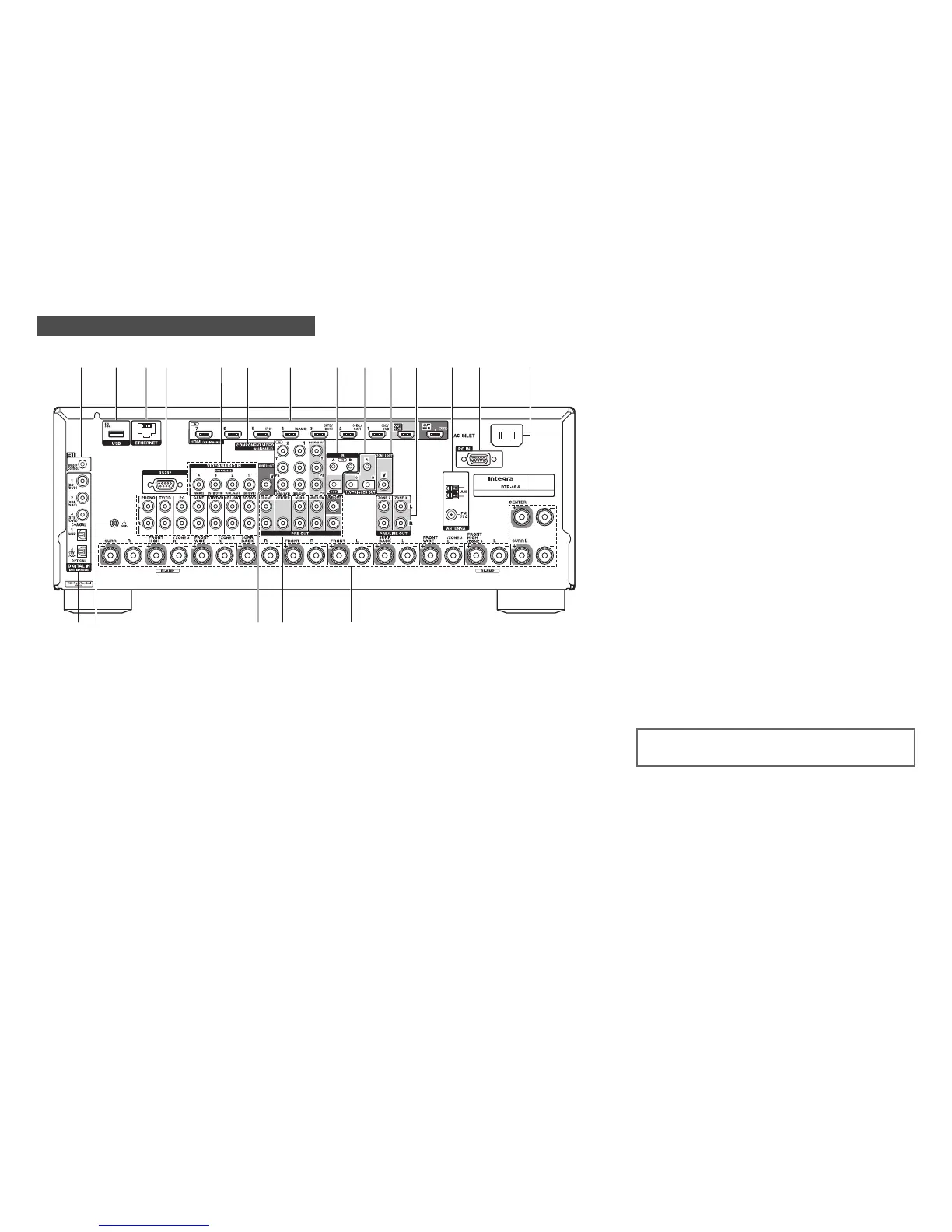

Rear Panel
f
n
qsrpo
ih jke g mla db c
See “Connecting the AV Receiver” for connection
(➔ pages 11 to 18).
