Intel 80960KB

80960KB
32

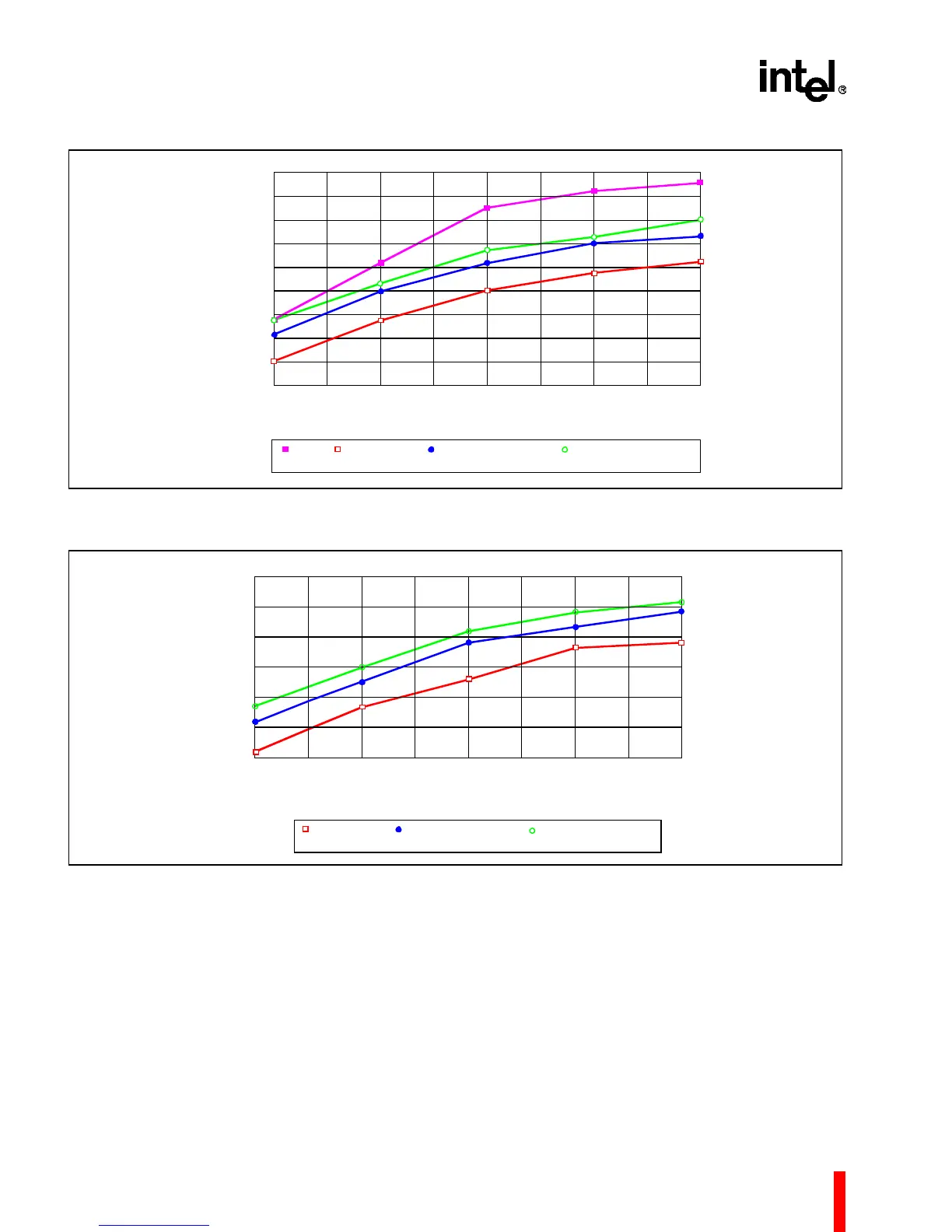

Figure 25. 25 MHz Maximum Allowable Ambient Temperature
Figure 26. Maximum Allowable Ambient Temperature for the Extended Temperature TA-80960KB at 20
MHz in PGA Package
AIRFLOW (ft/min)
TEMPERATURE (
o
C)
80
75
70
65
60
55
50
45
40
0 100 200 300 400 500 600 700 800
PQFP PGA with no
heatsink
PGA with omni-
directional heatsink
PGA with uni-
directional heatsink
85
PGA with no
heatsink
PGA with omni-
directional heatsink
AIRFLOW (ft/min)
TEMPERATURE (
o
C)
0 100 200 300 400 500 600 700 800
120
115
110
105
100
95
90
PGA with uni-
directional heatsink
