INSTALLATIONS
12 IB865 User’s Manual

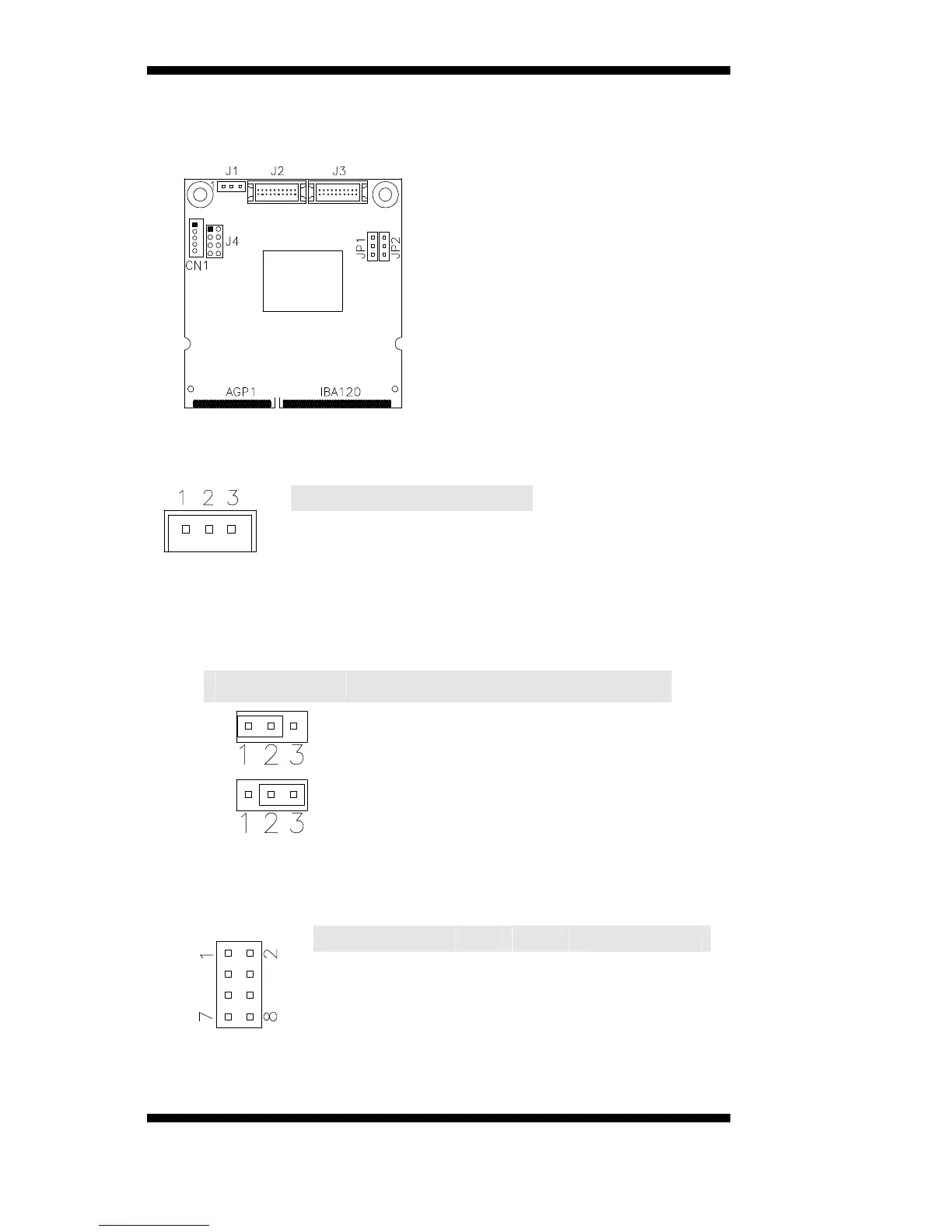

Jumper and Connectors on IBA120
J1: Panel Inverter Power Connector
Pin # Signal Name
1 +12V
2 ENABKL
3 Ground
Remarks: Maximum current is 1A.
JP2: Panel Voltage Setting
JP2 Setting Panel Voltage
Pin 1-2
Short/Closed
3.3V
Pin 2-3
Short/Closed
5V
J4: TV out Connector
The pin assignments of the TV out connector are as follows:
Signal Name Pin Pin Signal Name
Ground 1 2 Ground
Y 3 4 C
NC 5 6 NC
COMP 7 8 Protect pin
