18 IB865 User’s Manual

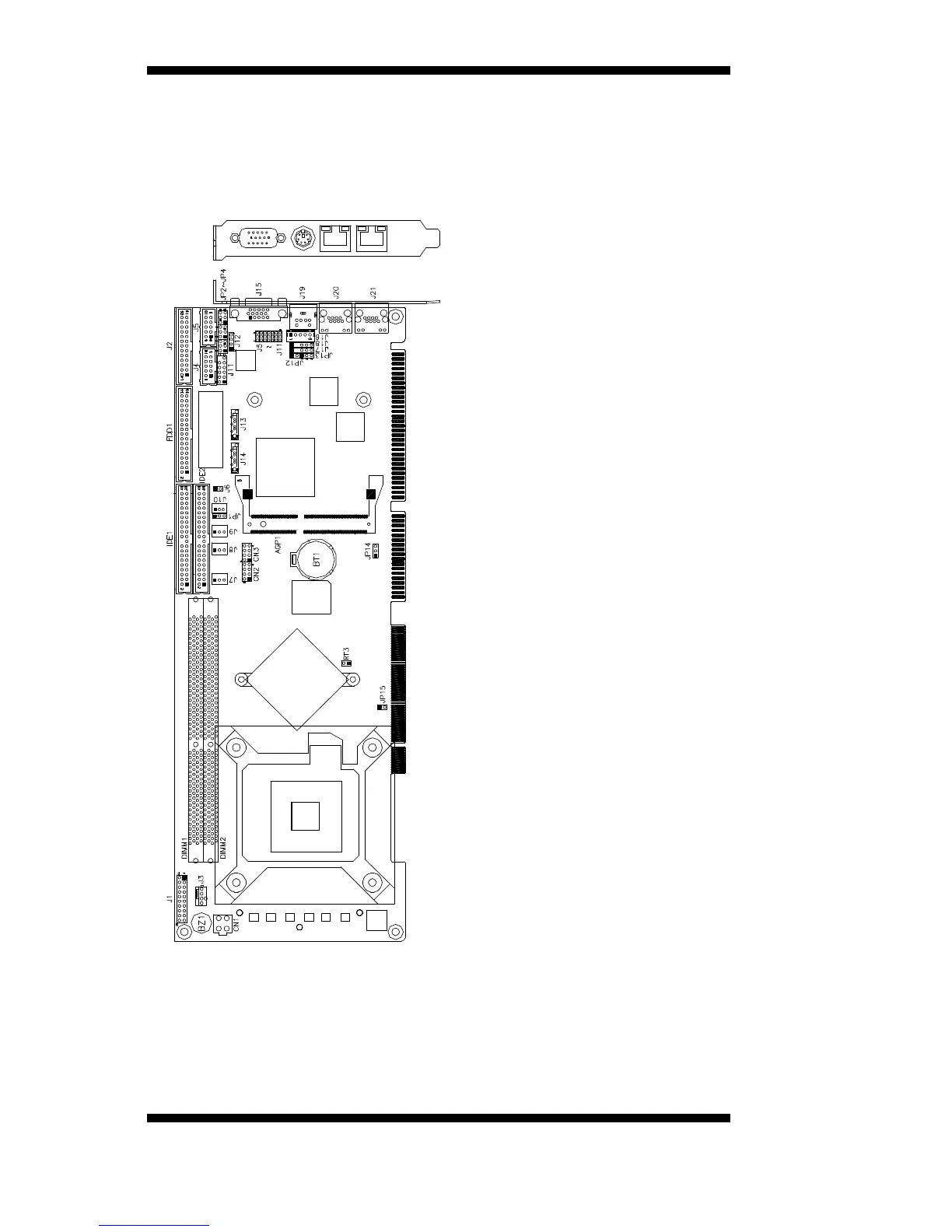

Connector Locations on IB865
Connector Locations on IB865:
IDE1, IDE2: EIDE Connectors
FDD1: Floppy Drive Connector
CN1: ATX 12V/+12V Power
Connector
CN2, CN3: USB Connectors
J3: CPU Fan Power Connector
J7: External ATX Power Connector
J8, J9: System Fan Power Connector
J1: System Function Connector
J2: Parallel Port Connector
J4, J5: COM1 and COM2 Serial Ports
Connector
J10: Wake On LAN Connector
J11: External Audio Connector
J12: CD-In Audio Connector
J13, J14: Serial ATA (SATA)
Connectors
J15: VGA CRT Connector
J16, J18: External PS/2 Mouse and
Keyboard Connector
J17: IrDA Connector
J19: PS/2 Keyboard and Mouse
Connector
J20: Primary RJ45 Connector
J21: Gigabit LAN RJ45 Connector
AGP1: MicroAGP Connector (for
IBA110 / IBA120)
