INSTALLATIONS
14 IB865 User’s Manual

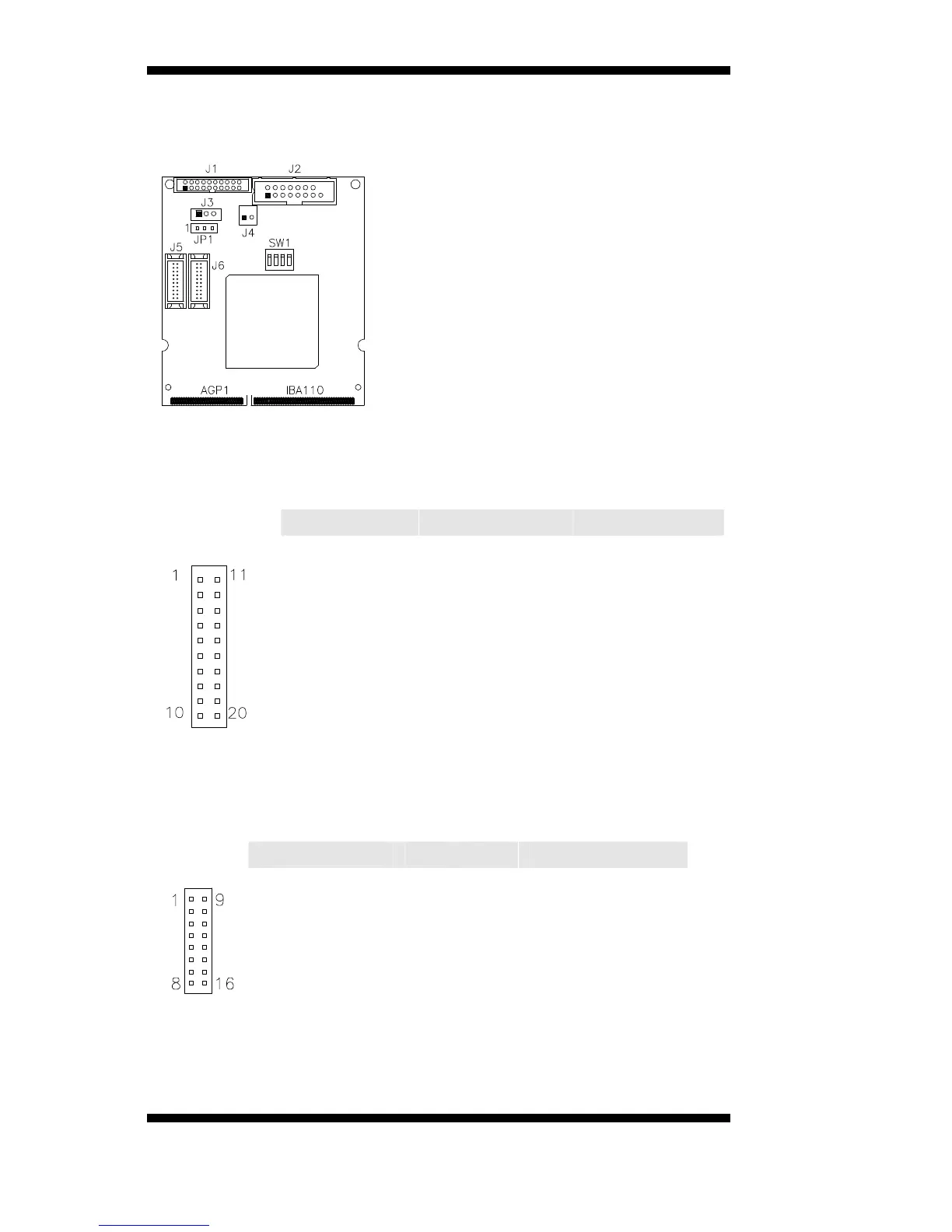

Jumper and Connectors on IBA110
J1: TMDS Panel Connector
TMDS stands Transition Minimized Differential Signaling.
Signal Name Pin # Pin # Signal Name
TX1P 1 11 TX2P
TXIN 2 12 TX2N
GND 3 13 GND
GND 4 14 GND
TXCP 5 15 TX0P
TXCN 6 16 TX0N
GND 7 17 NC
+5v 8 18 NC
HTPG 9 19 DDCDATA
J1
NC 10 20 DDCCLK
J2: CRT2 / TV-Out Connector
This connector is used for a second CRT monitor or use with a TV output device.
Signal Name Pin #
Pin #
Signal Name
Red / C 1 9 +5V
Green / Y 2 10 Ground
Blue / COMP 3 11 N. C.
N.C. 4 12 CRT2 DDCDAT
Ground 5 13 HSYNC
Ground 6 14 VSYNC
Ground 7 15 CRT2 DDCCLK
J2
Ground 8 16 N.C.
