Intel BLKDG41WV - Back Panel Connectors

Technical Reference
19
2.1.3 Back Panel Connectors
Figure 4 shows the locations of the back panel connectors.
Item Description
A PS/2 mouse
B PS/2 keyboard
C Serial A
D Parallel
E VGA
F USB 2.0 (2)
G LAN
H USB 2.0 (2)
I Line in
J Line out
K Mic

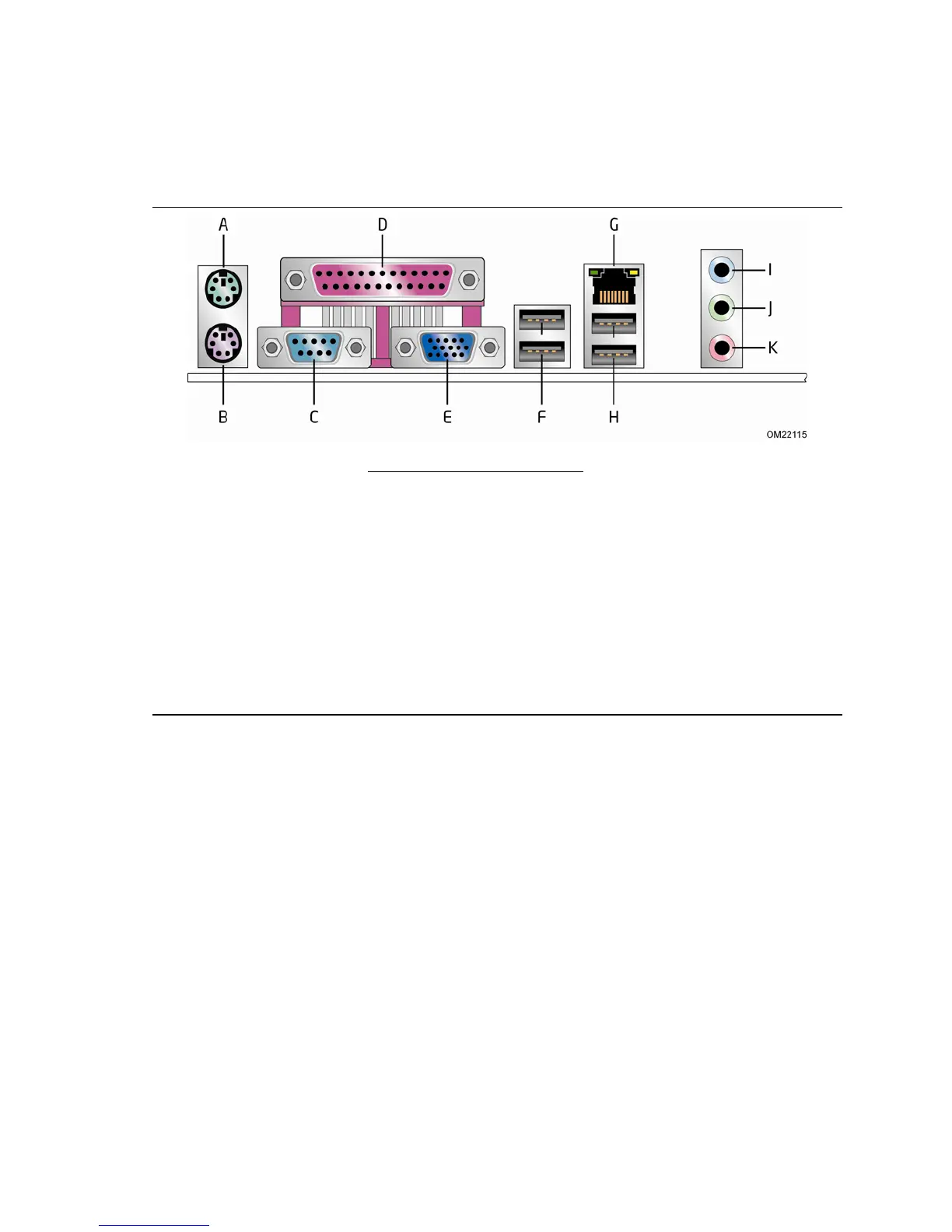

Figure 4. Back Panel Connectors
