Intel Desktop Board DG41WV Technical Product Specification
20
2.2 Mechanical Considerations
2.2.1 Form Factor
The board is designed to fit into a microATX-form-factor chassis. Figure 5 illustrates
the mechanical form factor of the board. Dimensions are given in inches [millimeters].
The outer dimensions are 9.60 inches by 7.80 inches [243.84 millimeters by
198.12 millimeters]. The locations of the I/O connectors and mounting holes are in
compliance with the ATX specification.

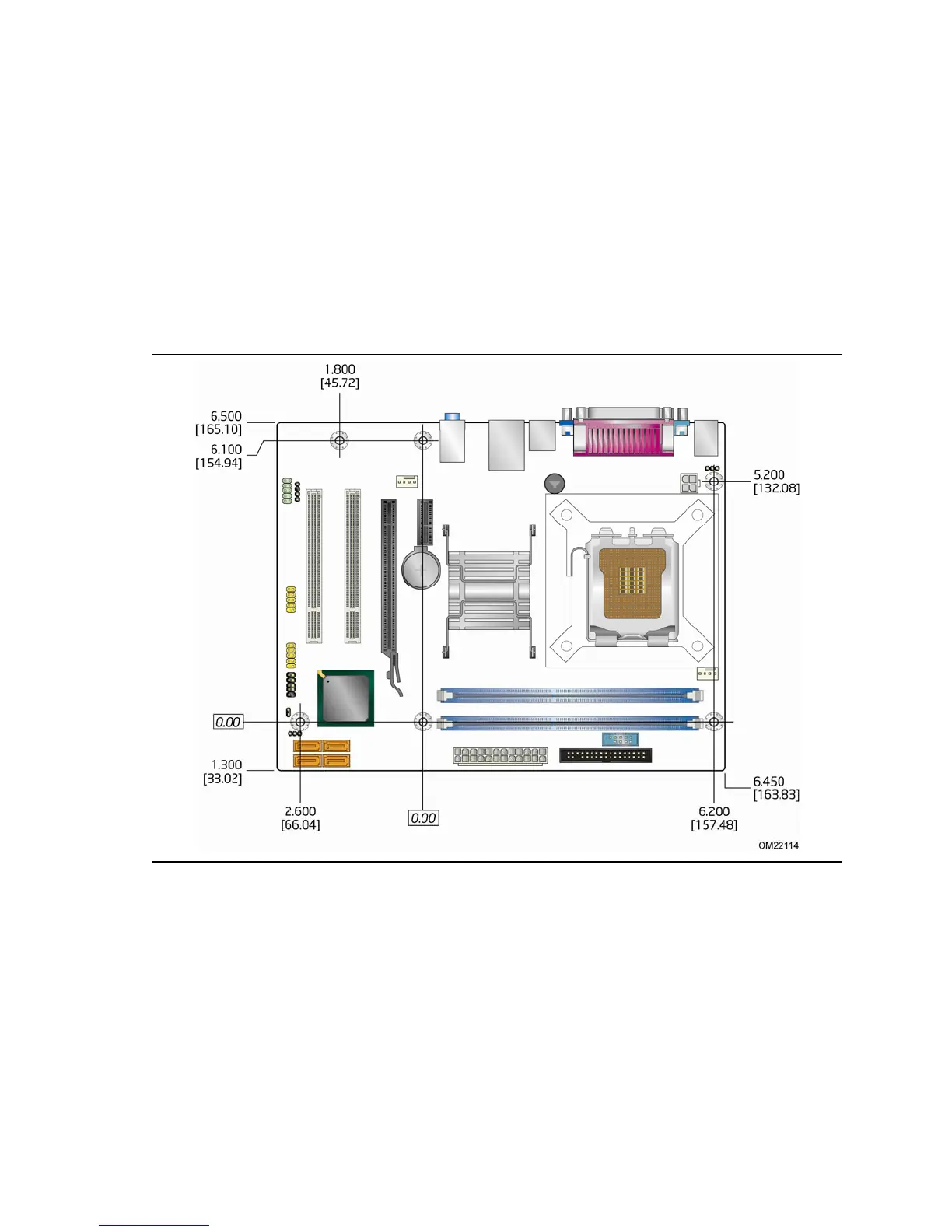

Figure 5. Board Dimensions
