Intel Desktop Board DP55WB Product Guide
42
Connecting Serial ATA (SATA) Cables
SATA cables support the Serial ATA protocol. Each cable can be used to connect one
internal SATA drive to the Desktop Board. For correct cable function:
1. Observe the precautions in “Before You Begin” on page 25.
2. Attach one end
of the SATA cable to one of the SATA connectors on the board
(Figure 21, A) and attach the other end of the
cable to the
SATA drive
(Figure 21, B).

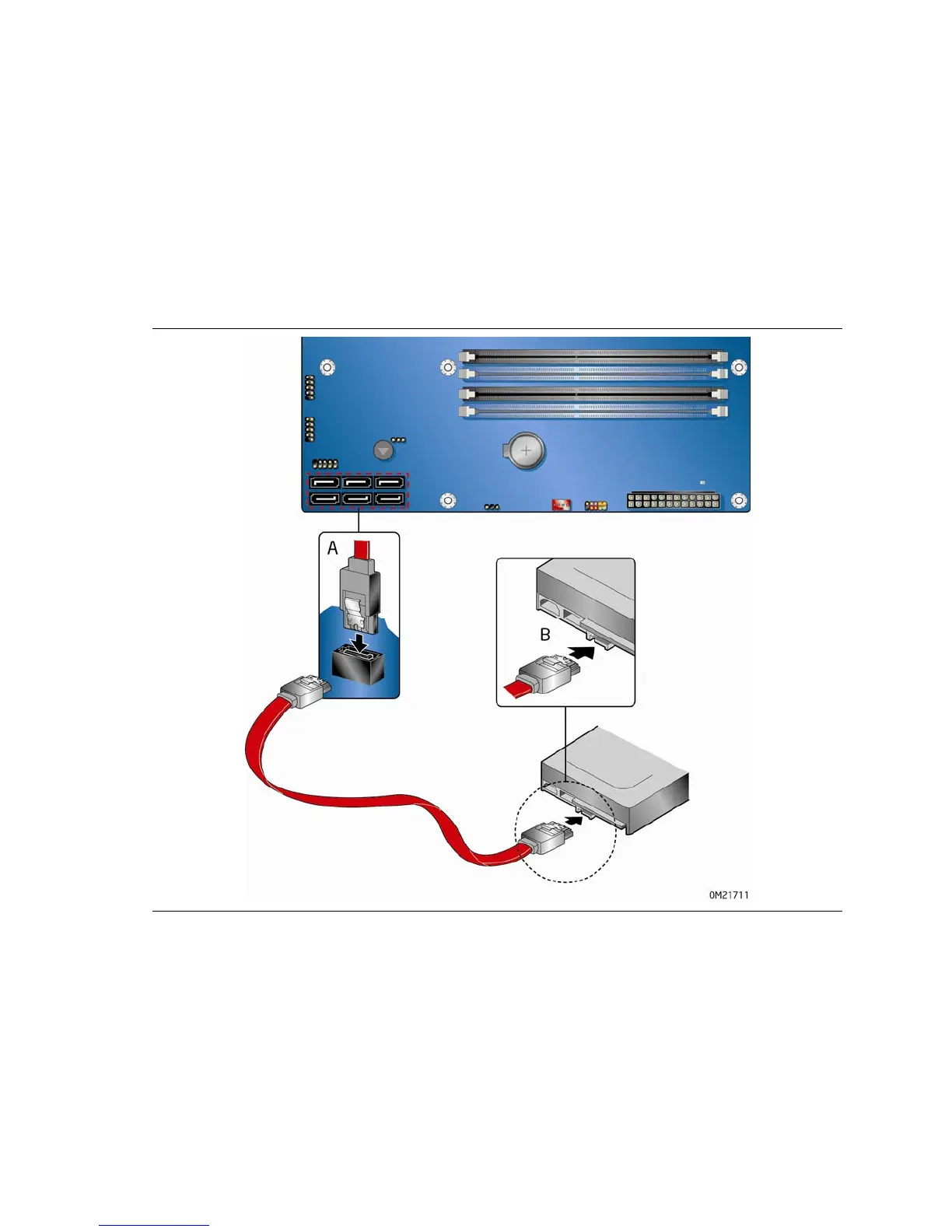

Figure 21. Connecting a Serial ATA Cable
