Intel Desktop Board DP55WB Product Guide
48
Connecting Chassis Fan and Power Supply
Cables
Connecting Chassis Fan Cables
Connect chassis fan cables to the chassi
s fan headers on the Desktop Board.
Figure 24 shows the location of
the chassis fan headers.

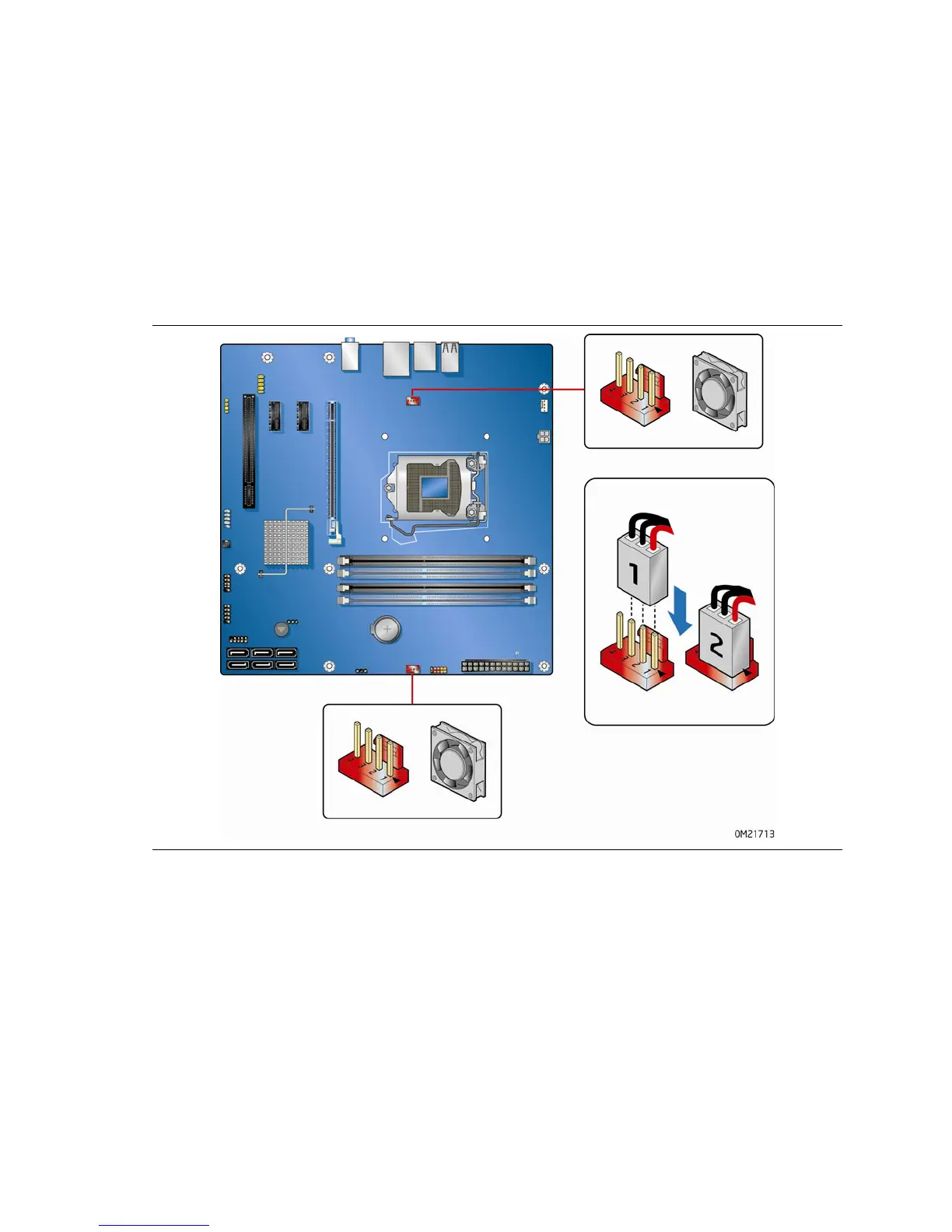

Figure 24. Location of t
he Chassis Fan Headers
47
49
