Intel Desktop Board DP55SB Product Guide
12
Desktop Board Components
Figure 1 shows the approximate location of the major components on Intel Desktop
Board DP55SB.

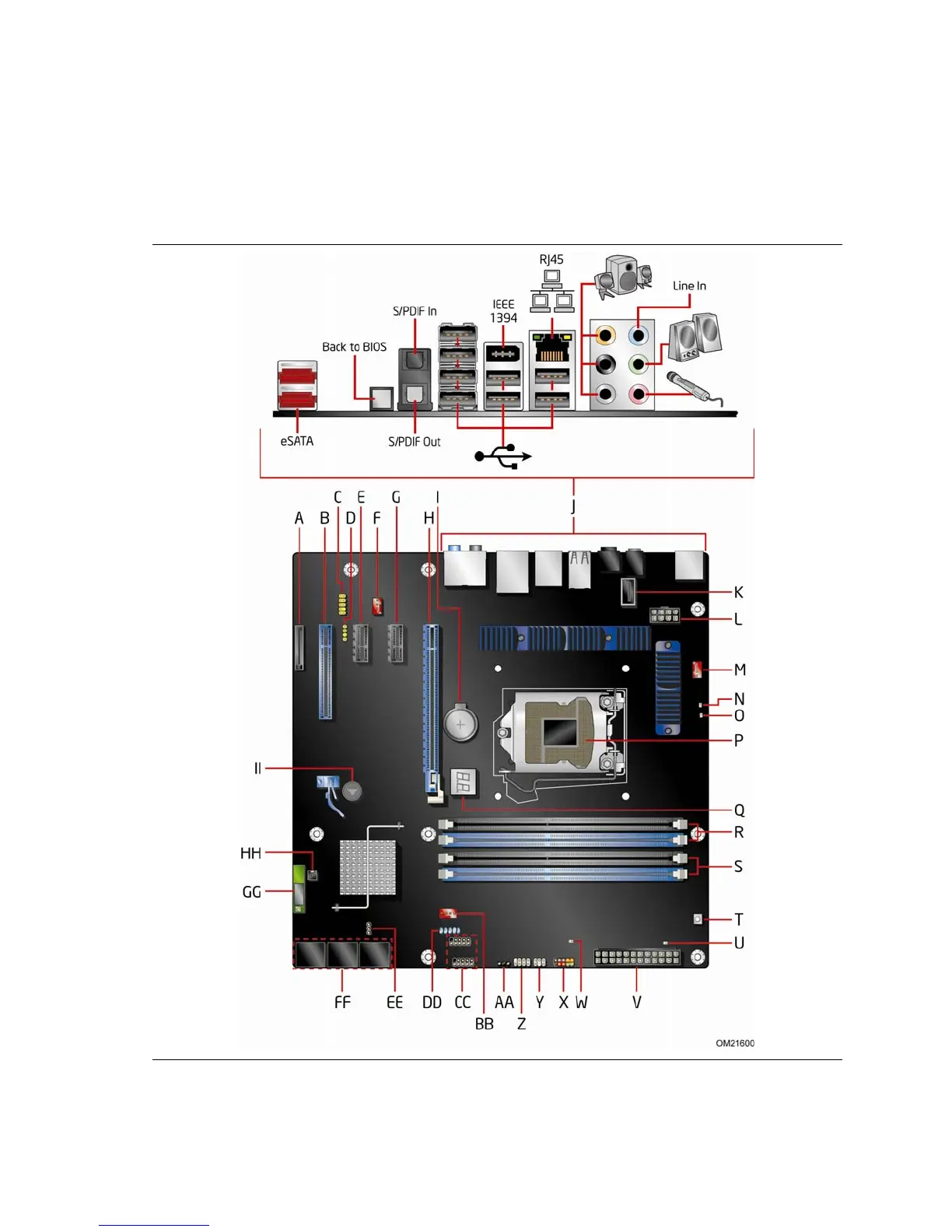

Figure 1. Intel Desktop Board DP55SB Components
