Desktop Board Features
17
Two LEDs are built into the RJ-45 LAN connector located on the back panel (see
Figure 2). These LEDs indicate the status of the LAN as shown in Table 3.

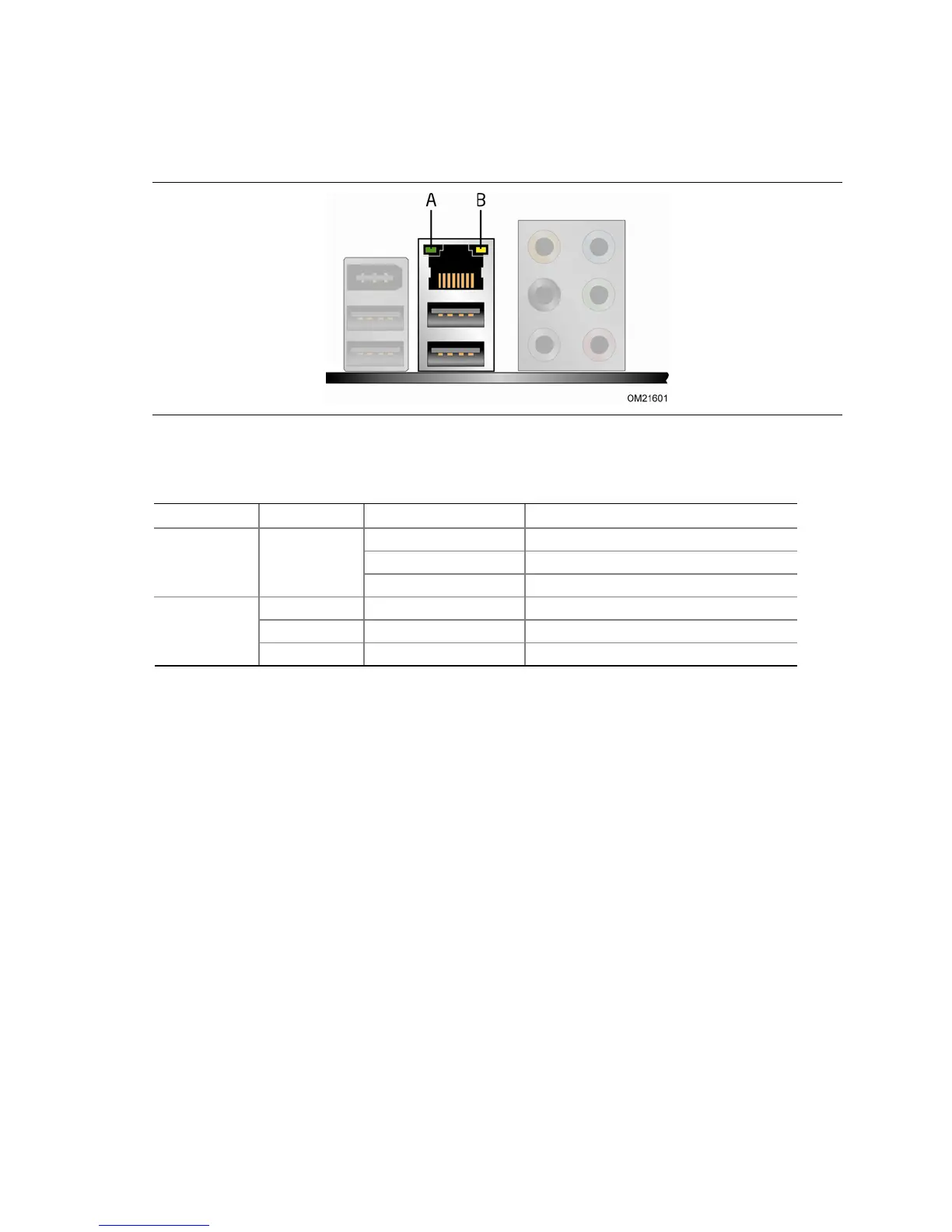

Figure 2. LAN Connector LEDs
Table 3. LAN Connector LEDs
LED LED Color LED State Indicates
A Off LAN link is not established
Green
On LAN link is established
Blinking LAN activity is occurring
N/A Off 10 Mb/s data rate
Green On 100 Mb/s data rate
B
Yellow On 1000 Mb/s data rate
Bluetooth* Technology Support
The Desktop Board includes a Bluetooth* module (Figure 1, GG). The Bluetooth
module plus the included external antenna enables you to connect with a variety of
Bluetooth-enabled devices. Driver support is provided by Microsoft operating systems
such as Microsoft Windows Vista and Microsoft Windows 7.
Refer to Connecting the Bluetooth Antenna on page 58 for information on how to
connect the antenna pr
ovided with the board to the Bluetooth module.
