Intel Desktop Board DP55SB Product Guide
50
Connecting to the Internal Headers
Before connecting cables to any of the inte
rnal headers, observ
e the precautions in
“
Before You Begin” on page
31.

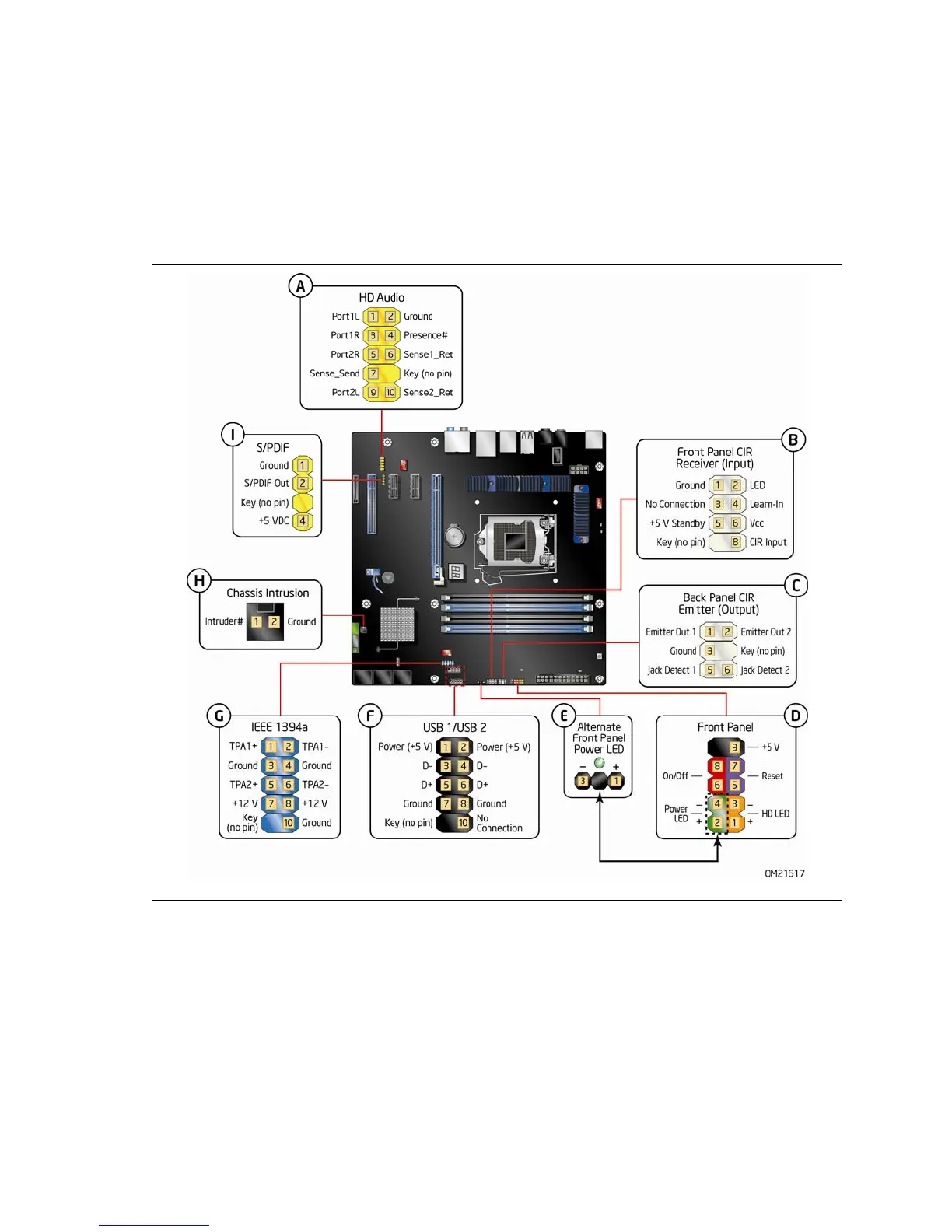

Figure 27 sho
ws the location of the internal headers
and co
nnectors on Intel
Desktop Board DP55SB.
Figure 27. Internal Headers
49
51
