Intel Desktop Board DP55SB Product Guide
66
To replace the battery, follow these steps:
1. Observe the precautions in "Before You Begin" (see page 31).
2. Turn off all peripheral devices connected to t
he computer. Disconnect the
computer’s power cord from the AC power source (wall outlet or power adapter).
3. Remove the computer cover.
4. Locate the battery on the board (see Figure 33).
5. Wi
th a medium flat-bladed screwdriver, gently pry the battery free from its
connector. Note the orientation of the “+” and “-” on the battery.
6. Install the new battery in the connector, orienting the “+” and “-” correctly.
7. Replace the computer cover.

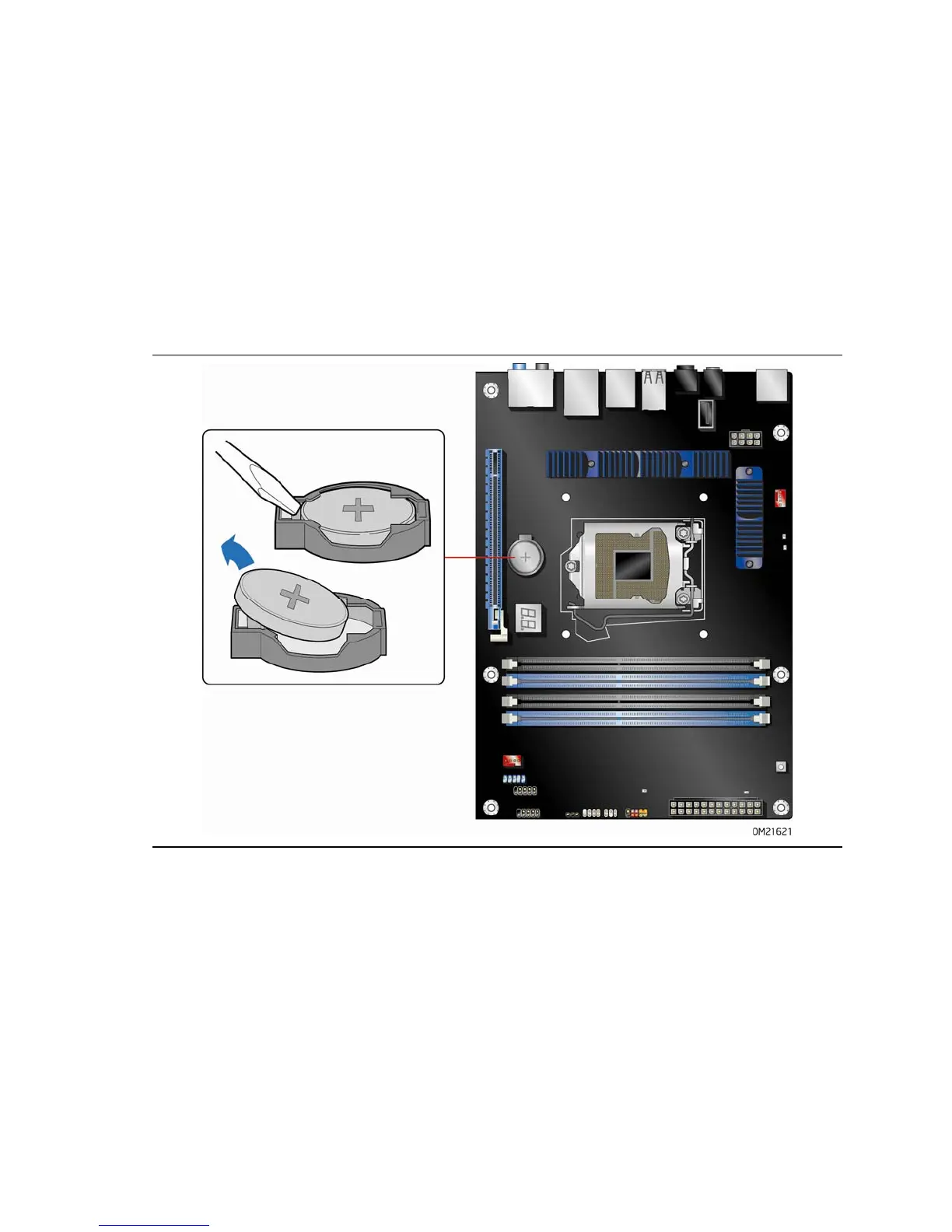

Figure 33. Removing the Battery
