Installing and Replacing Desktop Board Components
43

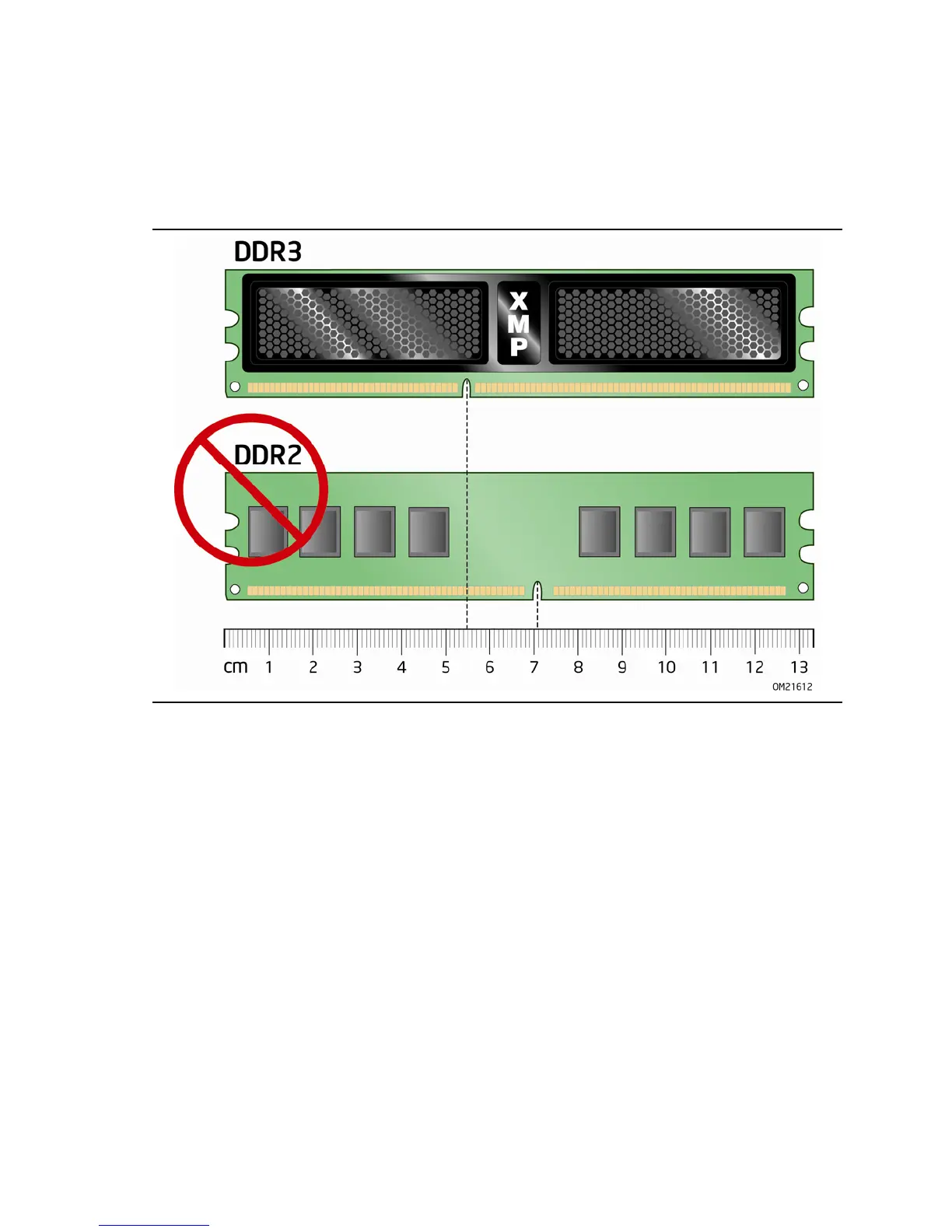

Installing DIMMs
To make sure you have
the correct DIMM, place it on the i
llustration of the DDR3
DIMM in
Figure 21.
All the notches shoul
d match with the
DDR3 DIMM.
Figure 21. Use DDR
3 DIMMs
