Diagnostic/Status LEDs
The Desktop Board provides 11 LEDs that allow you to monitor the board’s progress
through the BIOS POST along with other board activities and conditions (see Figure 6).

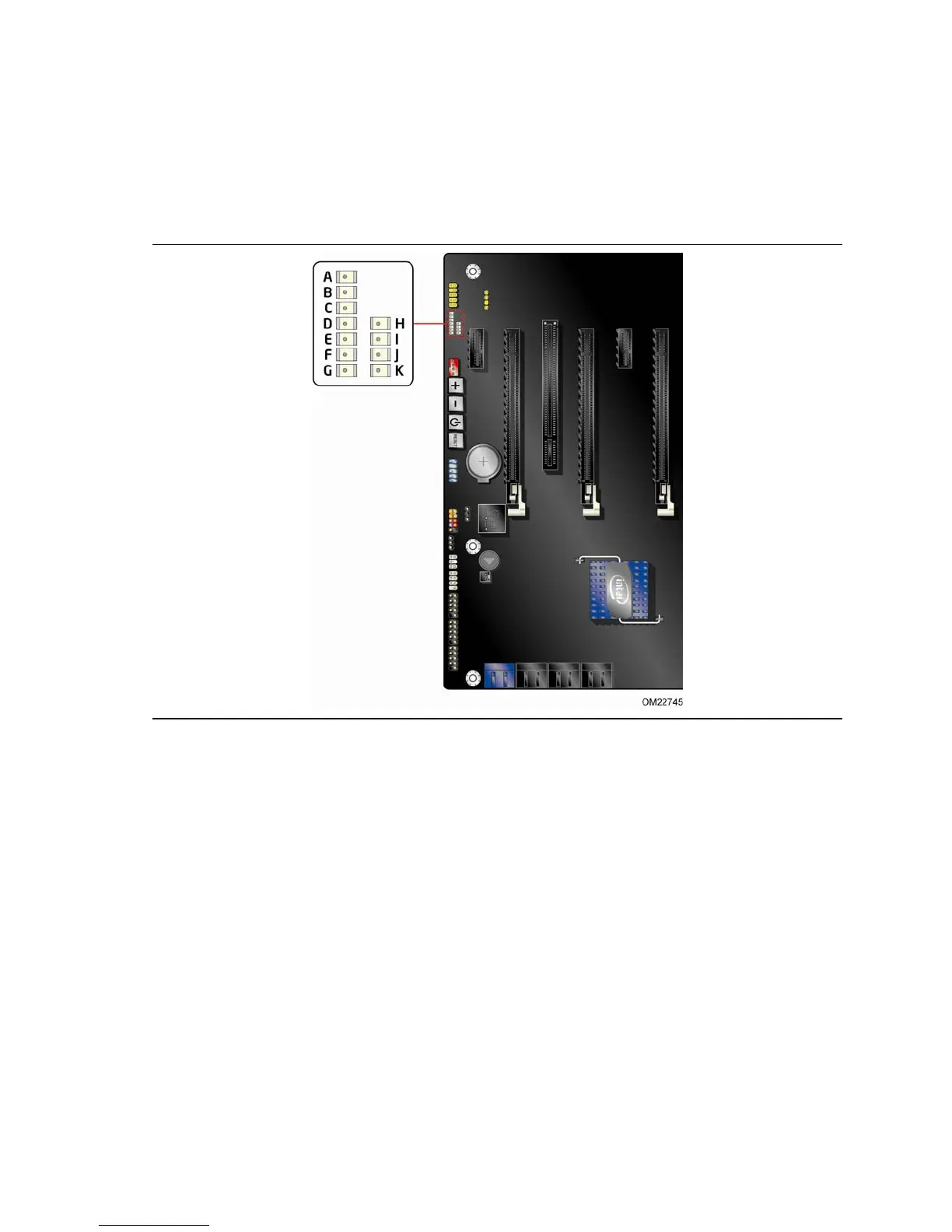

Figure 6. Location of the Diagnostic/Status LEDs
