Intel Desktop Board DX58SO2 Product Guide
56
Setting the BIOS Configuration Jumper
NOTE
Always turn off the power to the computer before moving the jumper. Moving the
jumper with the power on may result in unreliable computer operation.
Figure 27 shows the location of the Desktop Board’s BIOS confi
guration jumper block.

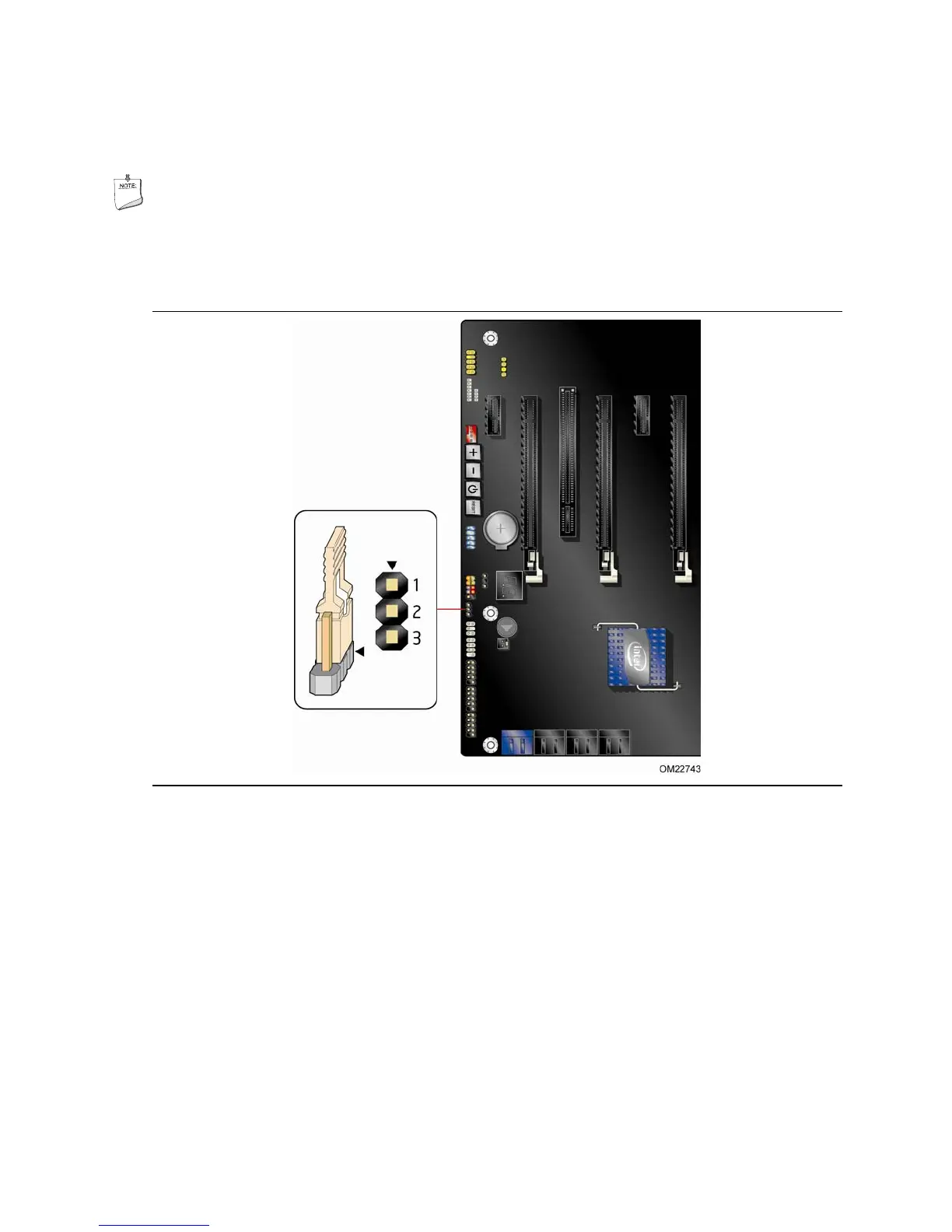

Figure 27. Location of the BIOS Configuration Jumper Block
The three-pin BIOS jumper block enables all board configurations to be done in the
BIOS Setup program. Table 14 shows the jumper setti
ngs for the BIOS Setup
program modes.
