Intel Desktop Board DX58SO2 Product Guide
54
Connecting Chassis Fan and Power Supply
Cables
Connecting Chassis Fan Cables
Connect chassis fan cables to the chassis fan headers on the Desktop Board.
Figure 25 shows the location of the chassis fa
n headers.

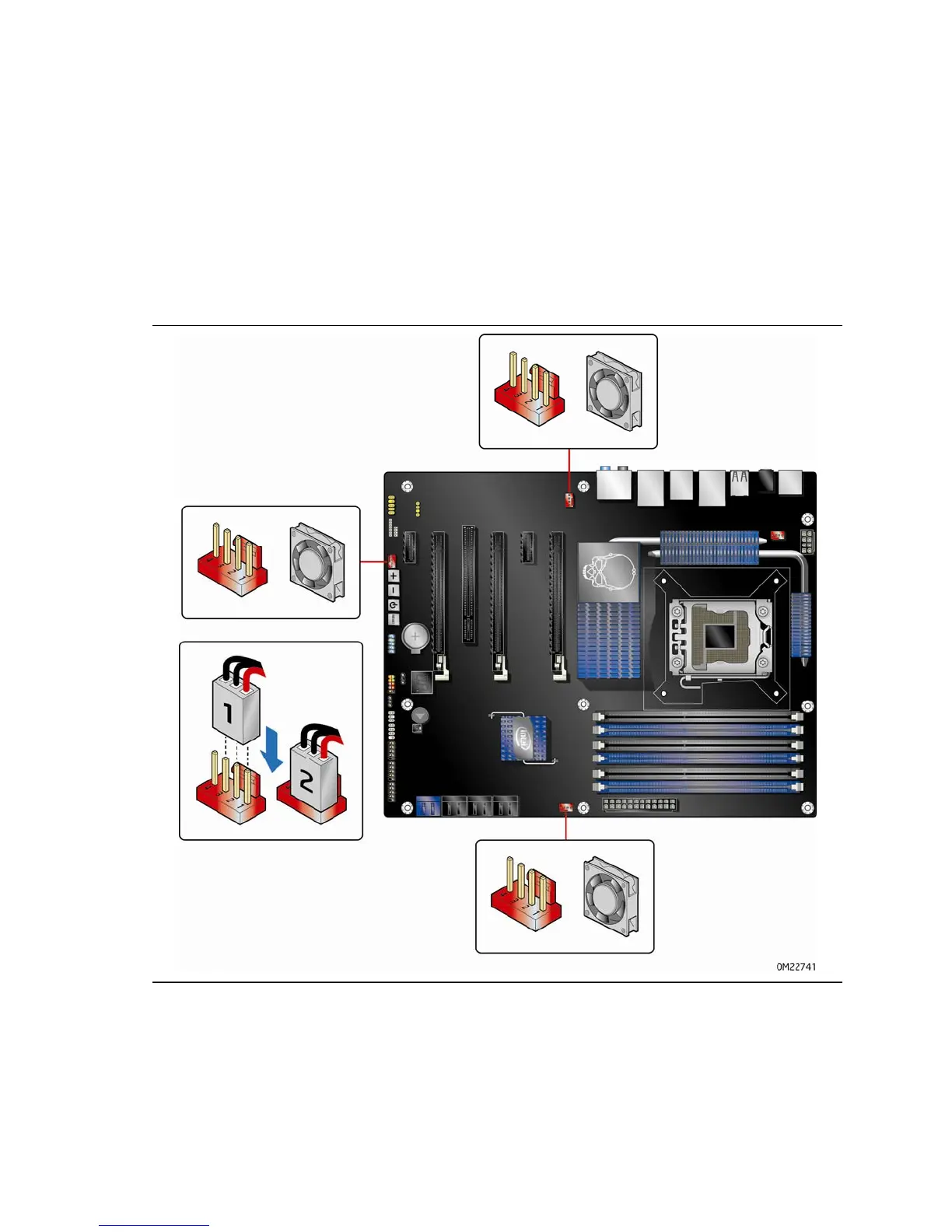

Figure 25. Location of the Chassis Fan Headers
