Intel Desktop Board DX58SO2 Product Guide
36

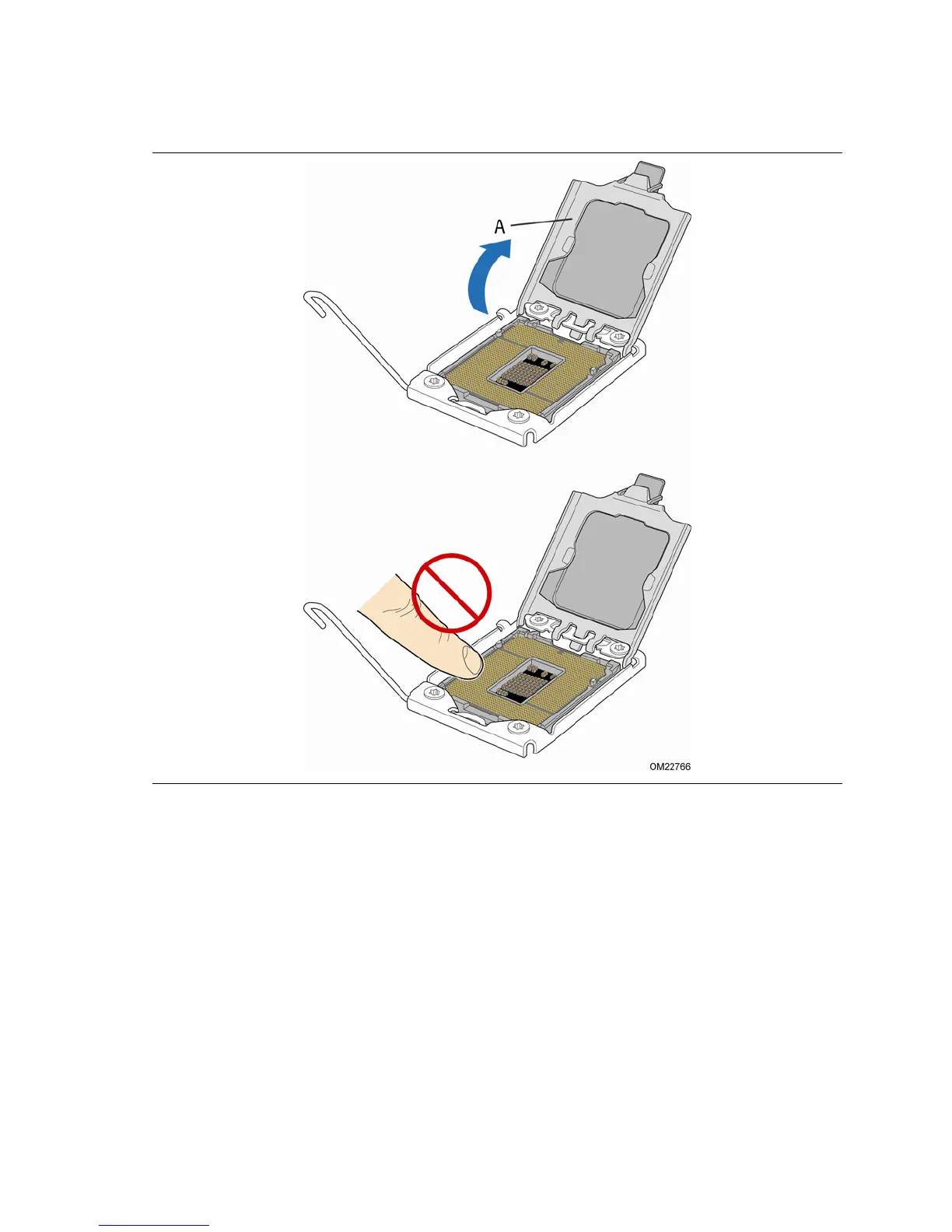

3. Lift the load plate as shown in Figure 10, A. Do not touch the socket contacts.
Figure 10. Lift the Load Plate
