Intel Braswell Series User Manual

13

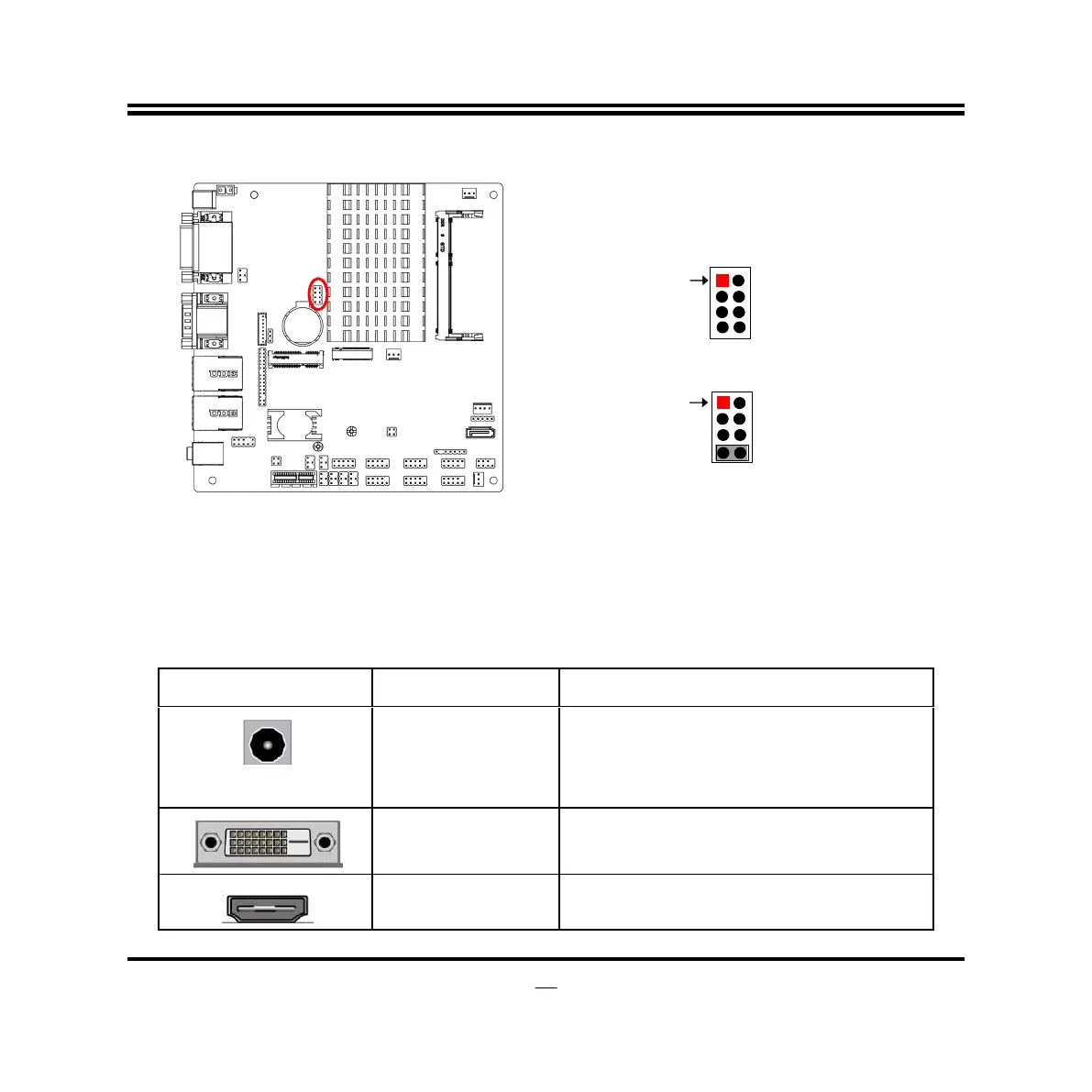

Pin (7-8)of JBAT (8-pin):Clear ME Function Setting
Pin 7-8 of JBAT → Clear ME
2
Pin1
Pin1
2
4
3
3
4
7-8 Open: Normal (Default);
;
7-8 Closed: Clear ME.
5
6
5
6
7
8
7
8
2-2 Connectors and Headers
2-2-1 Connectors
(1) Rear I/O Connectors
* Refer to Page 3.
Icon
Name
Function
12V DC-in Power
Connector
For user to connect compatible power
adapter to provide power supply for the
system.
DVI-D Port
To connect display device that support DVI
specification.
HDMI Port
To connect display device that support HDMI
specification.
