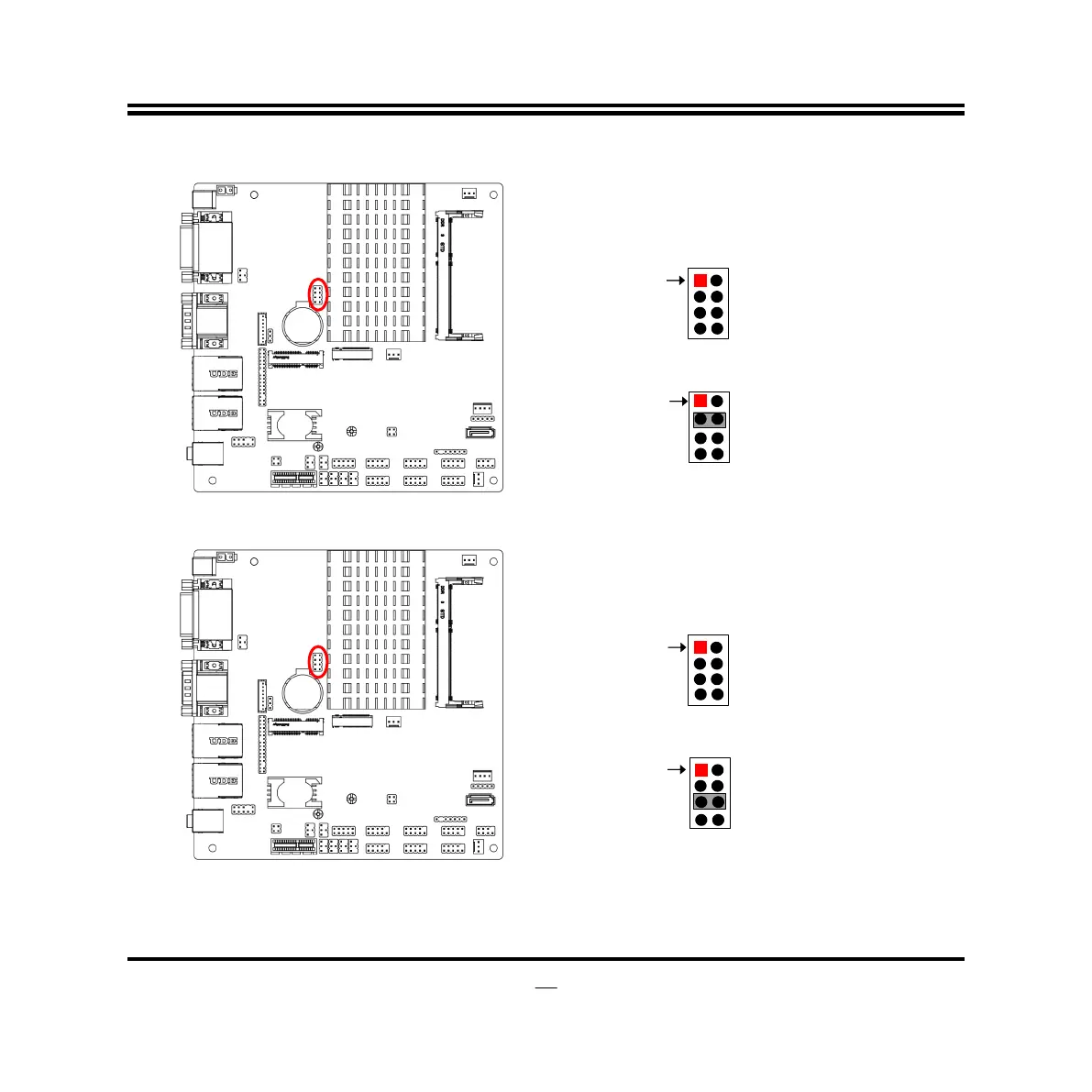

Pin (3-4) of JBAT (8-pin): Clear CMOS Setting
Pin 3-4 of JBAT → Clear CMOS
2
Pin1
Pin1
2
4
3
3
4
3-4 Open: Normal(Default);
;
3-4 Closed: Clear CMOS(One Touch).
Pin (5-6) of JBAT (8-pin): ODD Present Select
Pin 5-6 of JBAT → ODD Present Select
2
Pin1
Pin1
2
4
3
3
4
5-6 Open: Normal (Default);
;
5-6 Closed: ODD Present.
