2-2-2 Headers

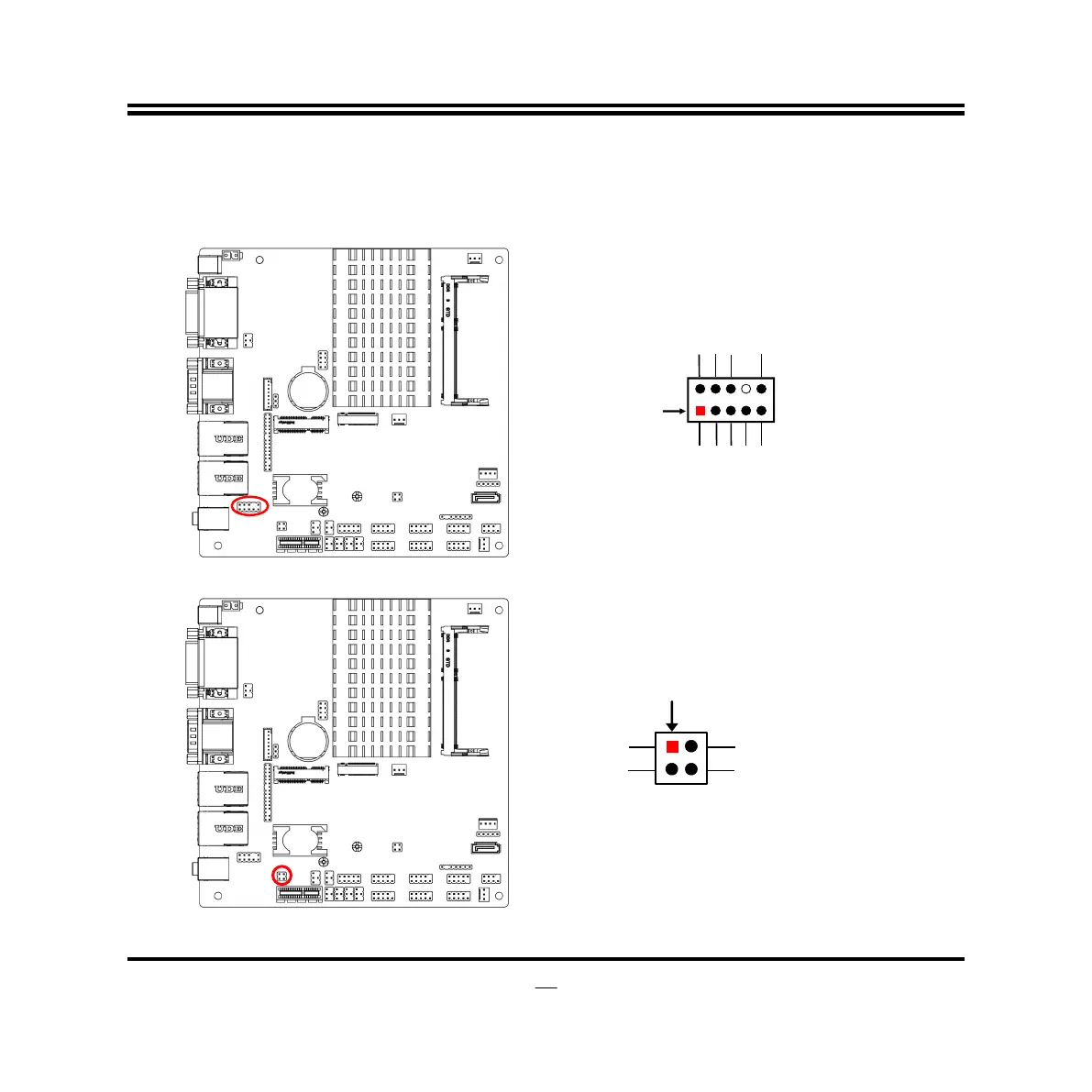

(1) FP_AUDIO (9-pin): Line-Out, MIC-In Header
This header connects to Front Panel Line-out, MIC-In connector with cable.
(2.54 pitch)
Line-Out, MIC Header
Pin 1
MIC2-L
LINE OUT-L
MIC2-R
LINE OUT-R
SENSE
NC
LINE_OUT_JD
NC
NC
2
(2) JLAN_LED (4-pin): LAN Activity LED Header
(2.54 pitch)
LAN1LED-
Pin 1
2
LAN2LED+
LAN1LED+
LAN2LED-
