18

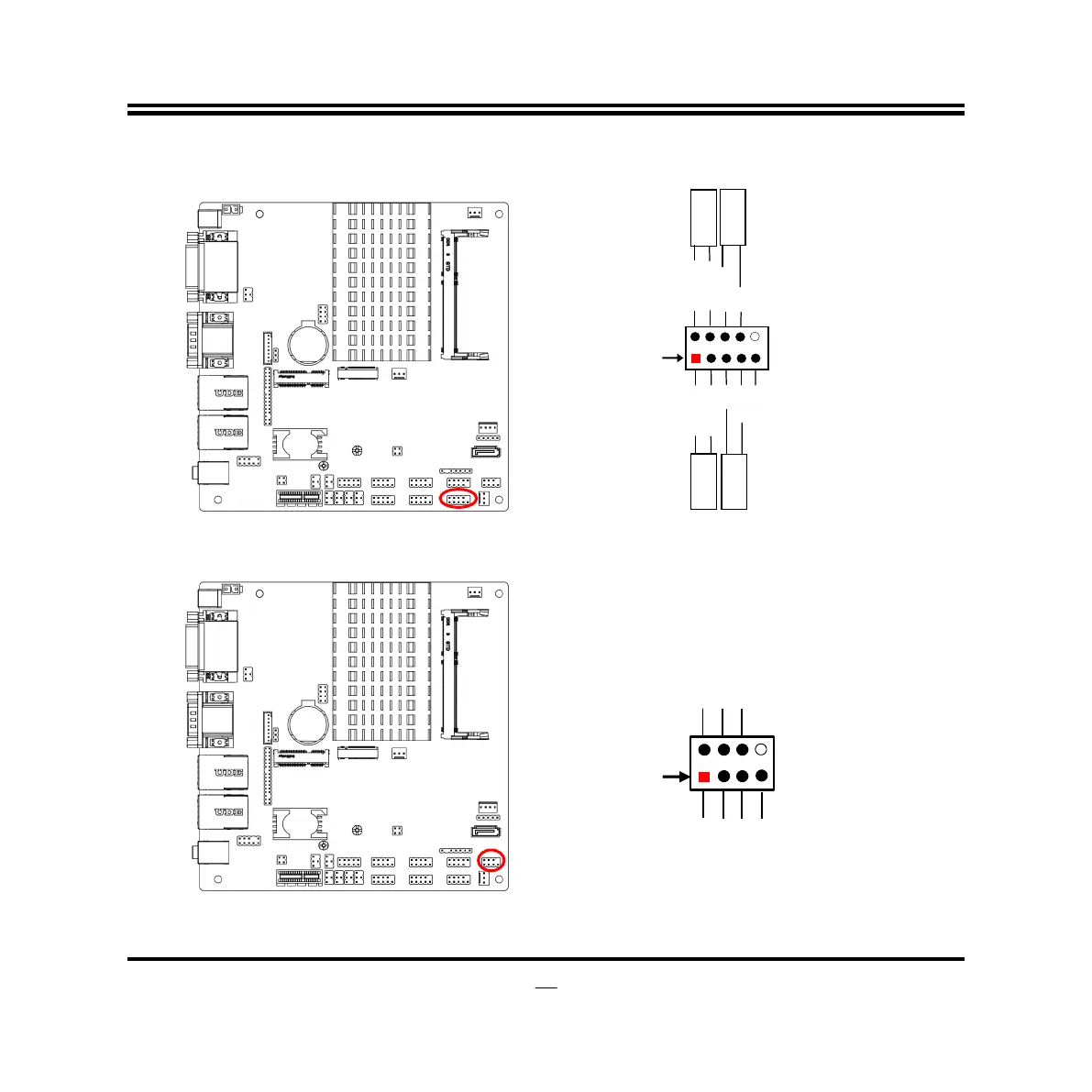

(3) JW_FP (9-pin): Front Panel Header
(2.54 pitch)
HDLED
RESET
HDDLED+
GND
PWRLED+
PWRBTN
GND
PWRLED-
HDDLED-
RSTSW
VCC
PWRBT
N
Pin 1
2
PWR LED
(4) SPK-LED (7-pin): Speaker Header & PWR LED Header
(2.54 pitch)
SPK+
NC
NC
PWRLED-
2
Pin 1
SPK-
PWRLED+
PWRLED-
