1* Front panel header
⚫
1* Power LED & speaker header
⚫
1* 9-pin USB 2.0 header (Expansible to 2* USB 2.0 ports)
⚫
1* PS/2 keyboard & mouse header
⚫
4* RS232 serial port header(COM3/4/5/6)
⚫
1* SMBUS header/I2C
⚫
1* GPIO_CON header
⚫
1* LVDS header
⚫
1* LVDS inverter header
* Note: 1. Many PCs now include XHCI USB controllers which allow for the support of USB 3.0 and higher USB
speeds. This inclusion of XHCI controllers has lessened the need for EHCI USB controllers within platforms.
However, legacy operating systems (OS) may not natively recognize XHCI controllers. You might need to
pre-install XHCI driver while desiring to install a non-xHCI OS (ex.Windows* 7) on Intel platforms which do not
include EHCI controllers. Please contact your representative for more details. 2. Braswell SOC will support
memory speed at 1600 MHz and 1066 MHz only. If 1333 MHz DIMM is installed, it will run at 1066 MHz. It is not
validated while installing 1066MHz DIMM with this SOC.
1-3 Layout Diagram

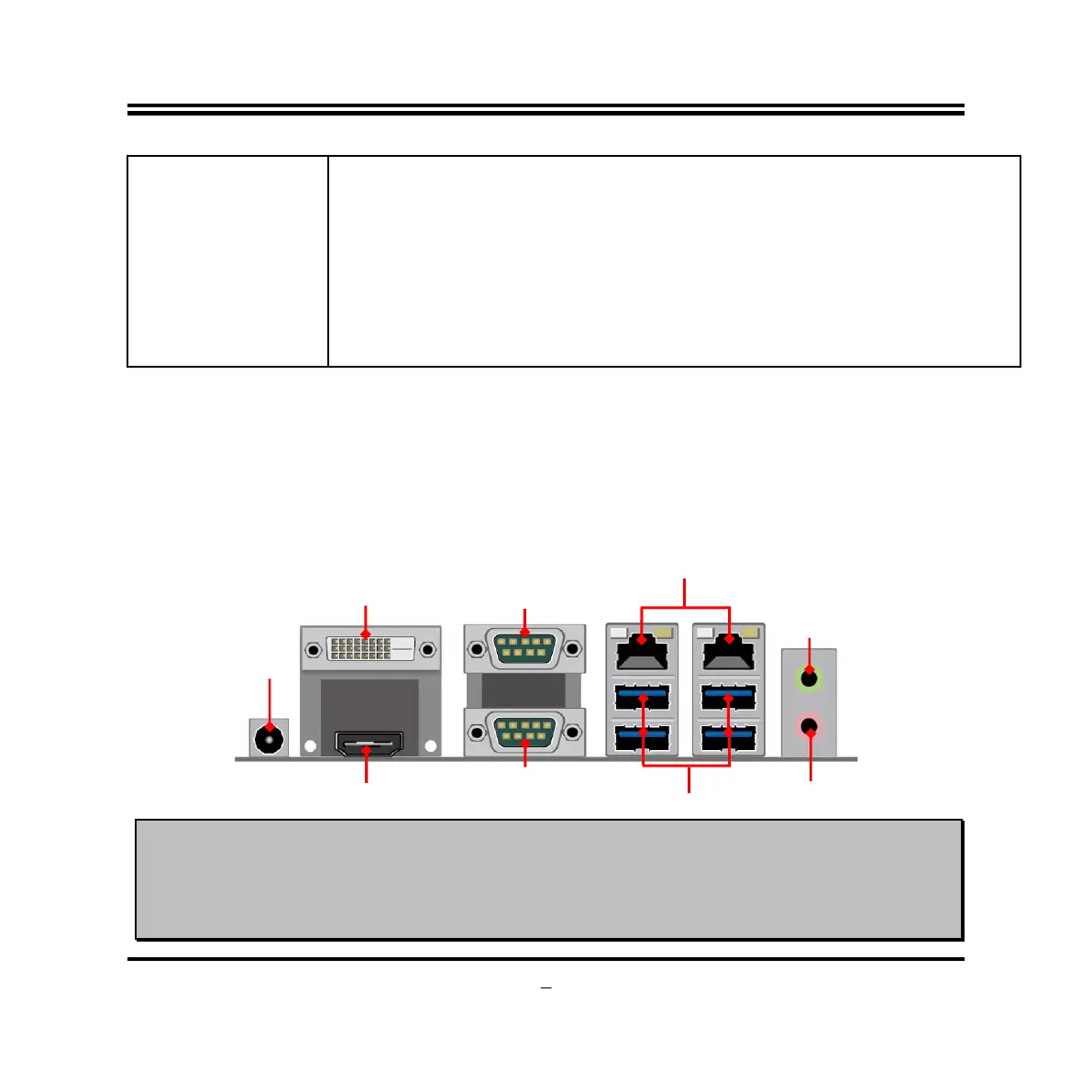

Rear IO Panel Diagram:
Warning!
The board has a DC 12V power connector (DCIN) in I/O back panel and an internal ATX12V
(ATX2P) power connector. User can only connect one type of compatible power supply to one
of them to power the system.
