Intel Braswell Series User Manual

16

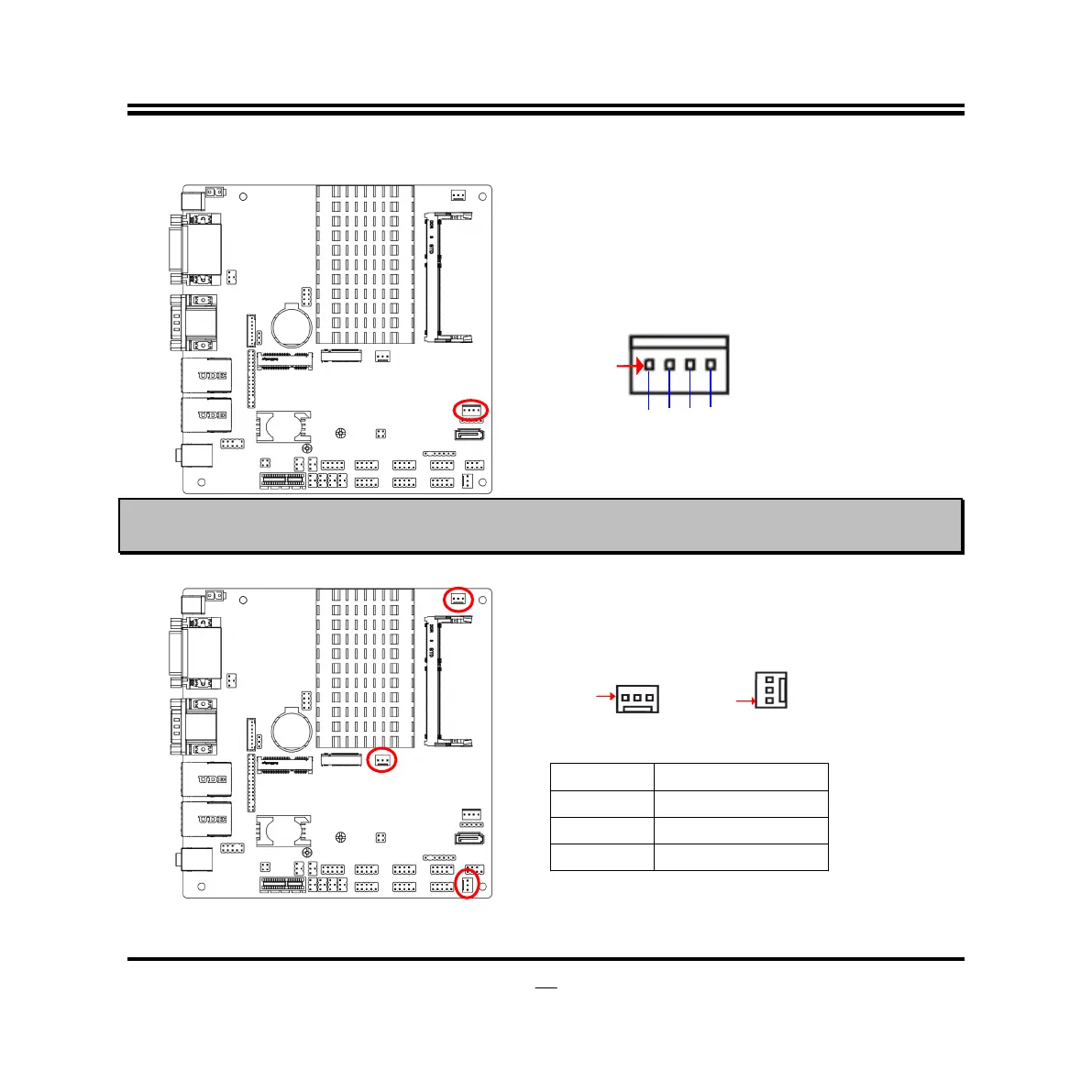

(5) SATAPW (4-pin): SATA Power Out Connector
(2.54 pitch)
Pin 1
+12V
GND
+5V
GND
Warning: Make sure that Pin-1 of compatible SATA Power connector is inserted into corresponding
Pin-1 of SATAPW to avoid possible damage to the board and hard disk driver!
(6) CPUFAN1/SYSFAN1/SYSFAN2 Connector (3-pin): FAN Connectors
(2.54 pitch)
Pin1
SYSFAN1/CPUFAN
Pin1
SYSFAN2
Pin No.
Definition
1
GND
2
+12V Fan Power
3
Fan Speed
*Note: CPUFAN & SYSFAYN1 support SmartFan function (refer to Page36).
