15

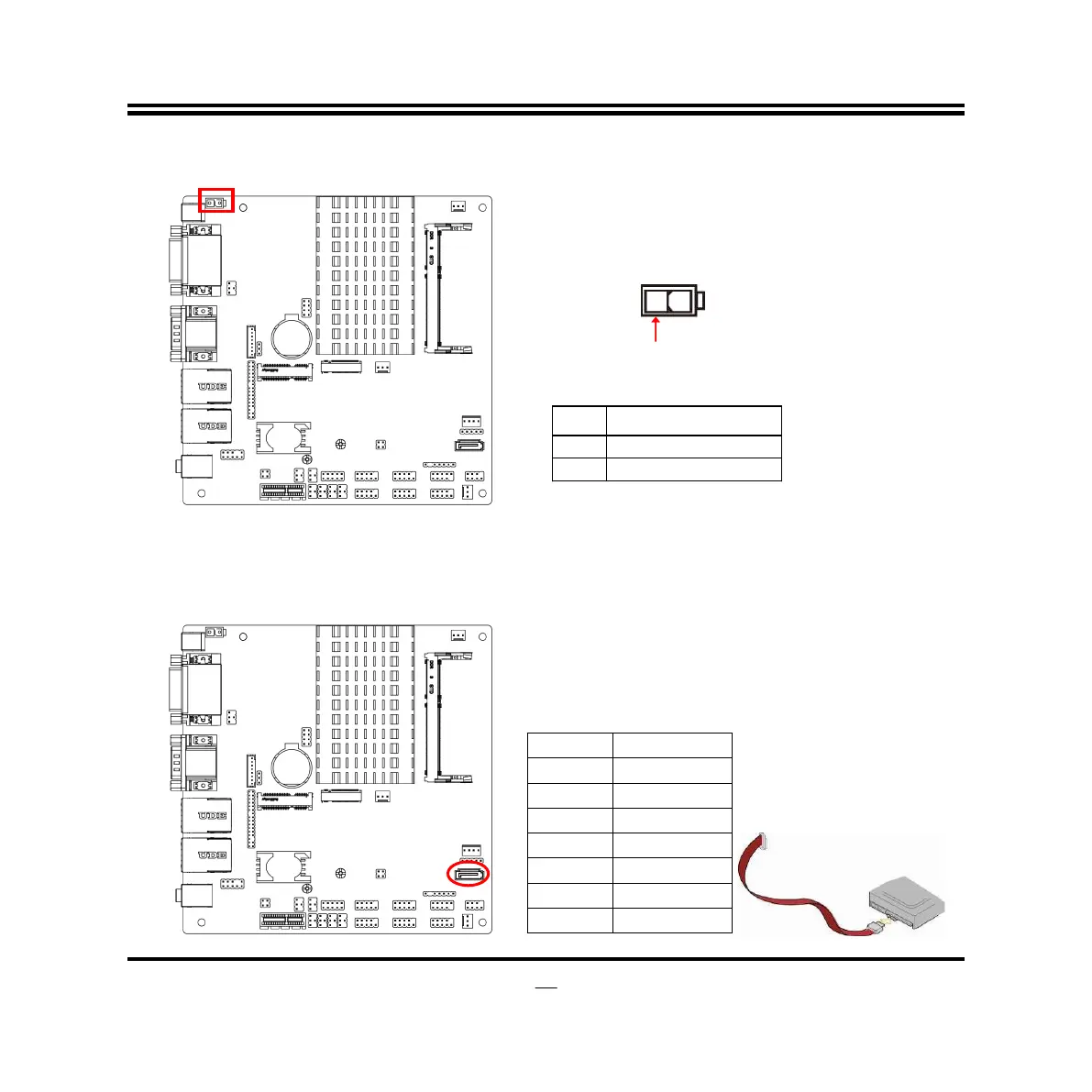

(3) ATX2P (2-pin Block): Internal 12V DC-in Power Connector
Pin1
Pin.
Definition
1
GND
2
+12V DC_IN
(4) SATA1 (7-pin Block): SATAIII Port connector
SATA1 port is a high-speed SATAIII port that supports 6GB/s transfer rate.
Pin No.
Definition
1
GND
2
TXP
3
TXN
4
GND
5
RXN
6
RXP
7
GND
