Heat Sink Installation Instructions—Intel
®
945GME Express Chipset
Appendix A Heat Sink Installation Instructions
It is necessary for the Intel
®
Core
TM
2 Duo processor to have a thermal solution
attached to it in order to keep it within its operating temperature.
A heat sink is included in the kit. To install the heat sink:
1. Remove the heatsink from its package and separate the fan heatsink portion from
the heatsink backplate.
2. Examine the base of the heatsink, where contact with the processor die is made.
This surface should be clean of all materials and greases. Wipe the bottom surface
clean with isopropyl alcohol.
3. Place the backplate on the underside of the board so that the pins protrude through
the holes in the system board around the processor.

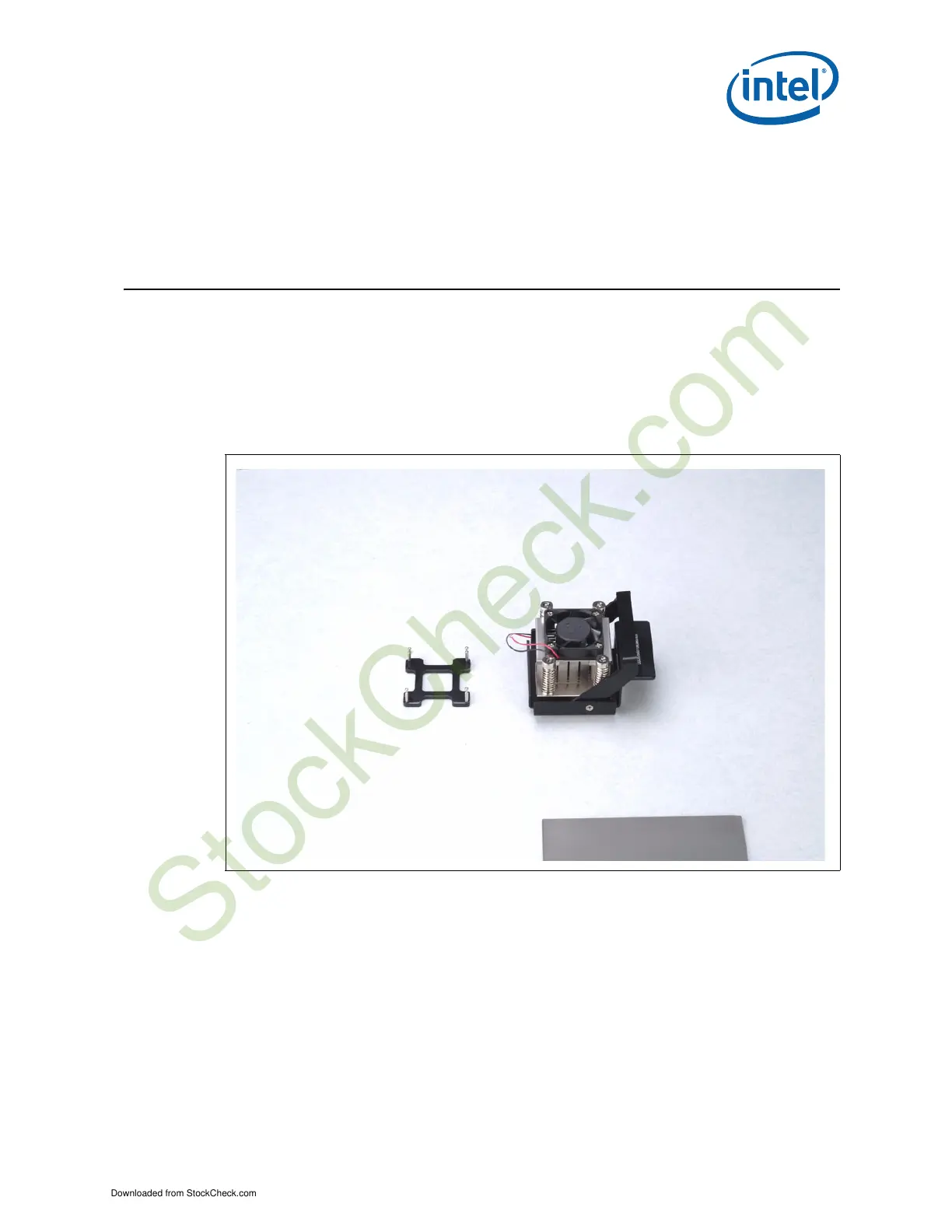

Figure 6. Heatsink and Backplate
