945GME Express Chipset—Heat Sink Installation Instructions
Intel
®
Core
TM
2 Duo processor with the Mobile Intel
®
945GME Express Chipset
Manual May 2007
54 Order Number: 317443-001US
4. Clean the die of the processor with isopropyl alcohol before the heatsink is attached
to the processor. This ensures that the surface of the die is clean.
5. Remove the tube of thermal grease from the package and use it to coat the bottom
of the heatsink thermal plate with the thermal grease.

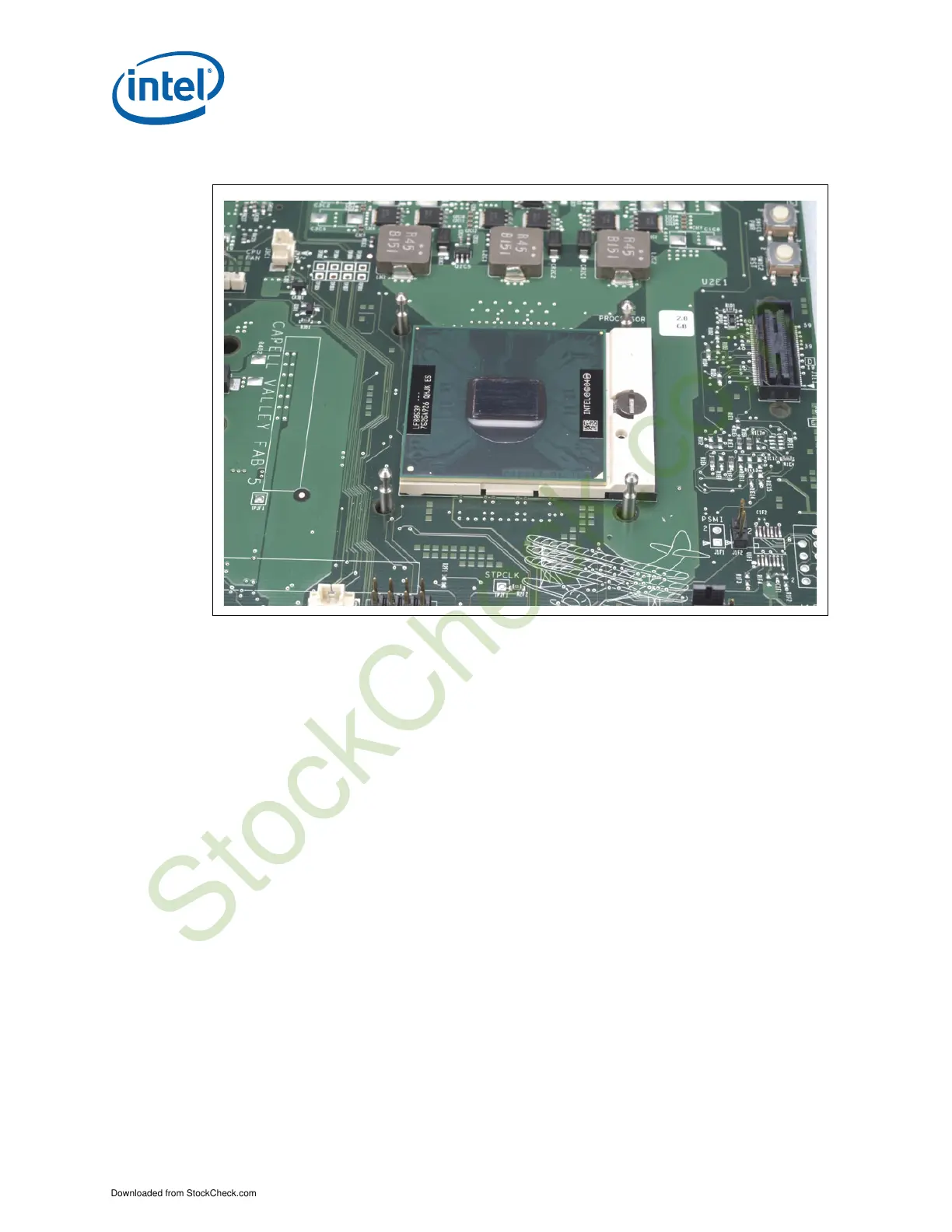

Figure 7. Backplate Pins
