Heat Sink Installation Instructions—Intel
®
945GME Express Chipset
6. Pick up the heatsink and squeeze the activation arm until it comes in contact with
the base plate that is attached to the heatsink base. This will cause the springs on
the heatsink attachment mechanism to compress.

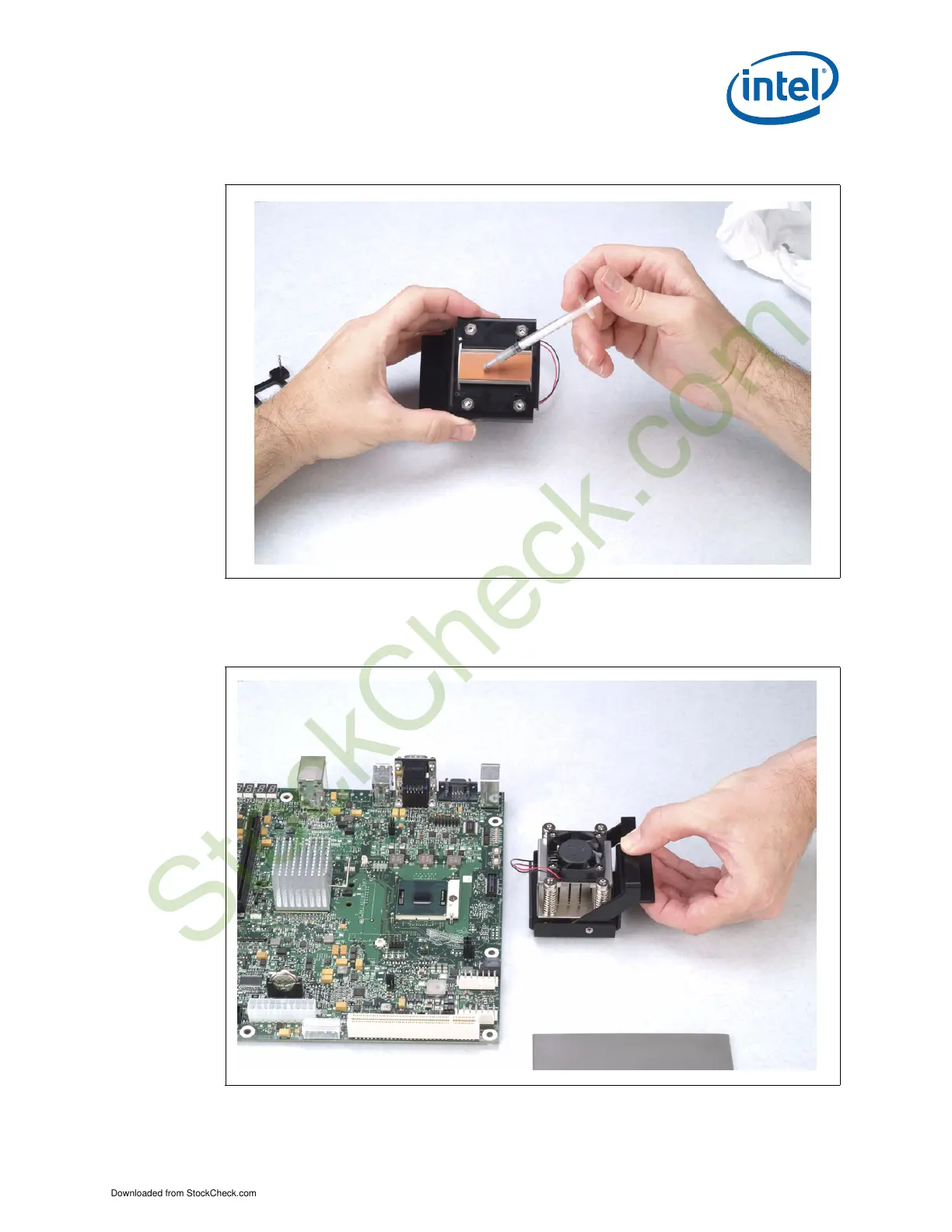

Figure 8. Applying the Thermal Grease
Figure 9. Squeezing Activation Arm
