Intel Desktop Board D2550MUD2 Technical Product Specification
54
2.2.2.5 Front Panel USB Headers
Figure 13 and Figure 14 are connection diagrams for the front panel USB headers.
NOTE
• The +5 VDC power on the USB headers is fused.
• Use only a front panel USB connector that conforms to the USB 2.0 specification for
high-speed USB devices.

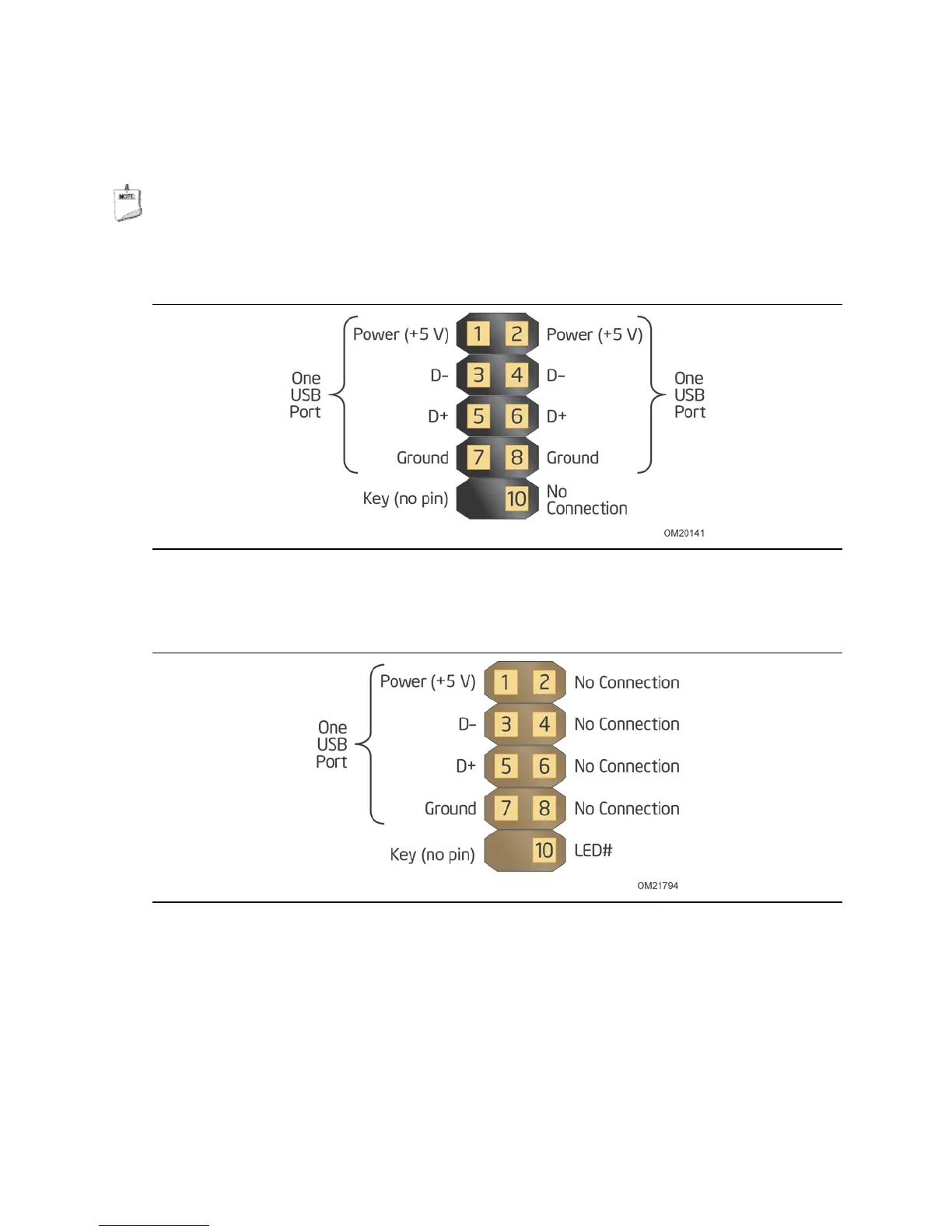

Figure 13. Connection Diagram for Front Panel USB Header
Figure 14. Connection Diagram for Front Panel USB Header
with Intel Z-USB Solid-State Drive or Compatible Device Support
