Intel
Desktop Board
D
2550MUD2
Technical Product Specifi
cation
62

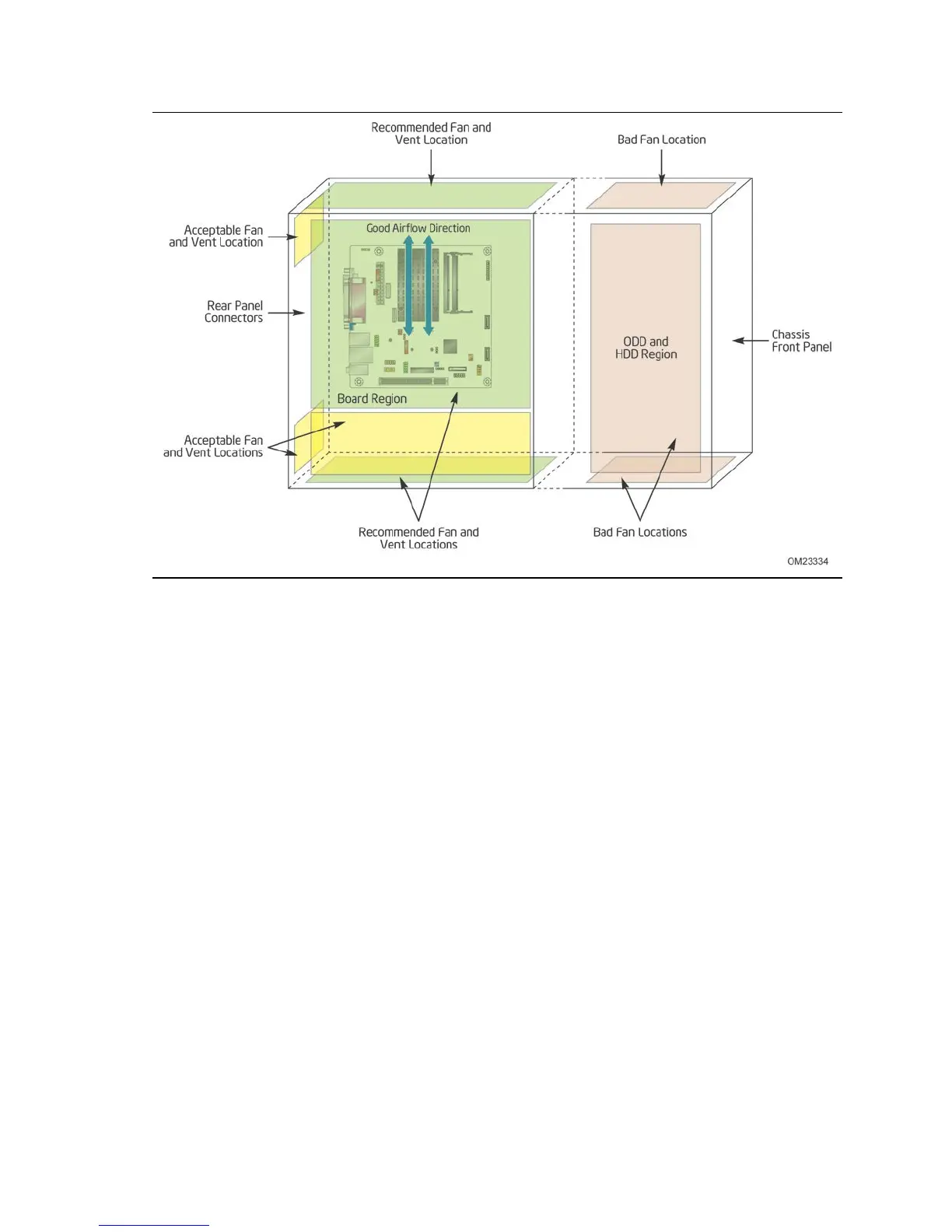

Figure 18
. Fan Locati
on Guide for C
h
assis Selection
(Chas
sis Orientation is Not Restric
ted)
For al
l
chassi
s con
fig
urat
i
ons, th
e heat
sin
k perform
ance p
aramet
er,
Ψ
JA
shoul
d be l
ess
tha
n 3.8
5 °C/
W. The det
ai
l
therm
al m
easurem
ent m
etrol
ogy i
s descri
bed
in
the
TMSDG.
For cha
ssis that fail to mee
t the thermal spe
cifications guidelin
e highligh
ted
above
, an actively co
oled heats
ink solution should be used.
61
63
Table of Contents
Default Chapter
2
Revision History
2
Intended Audience
5
What this Document Contains
5
Table of Contents
7
Tables
11
Product Description
11
Overview
11
Feature Summary
11
Board Layout
13
Figures
13
Major Board Components
13
Board Components Shown in Figure 1
14
Block Diagram
15
Online Support
16
Processor
16
Intel ® D2550 Graphics Subsystem
17
System Memory
18
Supported Memory Configurations
18
Memory Channel and SO-DIMM Configuration
19
Intel ® NM10 Express Chipset
20
Configuration Modes
21
SATA Support
22
Usb
22
Real-Time Clock Subsystem
23
Legacy I/O Controller
23
LAN Subsystem
24
LAN Subsystem Drivers
24
RJ-45 LAN Connector with Integrated Leds
25
LAN Connector LED Locations
25
LAN Connector LED States
25
Audio Subsystem
26
Audio Jack Support
26
Audio Subsystem Software
27
Audio Connectors and Headers
27
Back Panel Audio Connectors
27
1.10 Hardware Management Subsystem
28
Hardware Monitoring
28
Thermal Monitoring
29
Thermal Sensors and Fan Header
29
1.11 Power Management
30
Acpi
30
Effects of Pressing the Power Switch
30
Power States and Targeted System Power
31
Wake-Up Devices and Events
32
Hardware Support
33
Instantly Available Pc Technology
34
Wake from Usb
34
Wake from Serial Port
34
Location of the Standby Power Indicator LED
35
Technical Reference
37
Memory Map
37
Addressable Memory
37
Detailed System Memory Address Map
38
System Memory Map
39
Connectors and Headers
40
Back Panel
41
Back Panel Connectors
41
I/O Shield Reference Diagram
42
Component-Side Connectors and Headers
43
Component-Side Connectors and Headers Shown in Figure 11
44
TPM Header
45
Serial Port Headers
45
LVDS Data Connector
46
LVDS Panel Voltage Selection Jumper
47
FPD Brightness Connector
47
LVDS Inverter Power Voltage Selection Jumper
47
System Fan Header
48
SATA Connectors
48
Front Panel Wireless Activity LED Header
48
Front Panel Audio Header for Intel HD Audio
48
Front Panel Audio Header for AC '97 Audio
48
Front Panel USB Header
49
Front Panel USB Header with Intel Z-U130 USB Solid-State Drive or
49
Compatible Device Support
49
Add-In Card Connectors
50
Power Connector
51
Connection Diagram for Front Panel Header
52
Front Panel Header
52
States for a One-Color Power LED
53
Connection Diagram for Front Panel USB Header
54
Connection Diagram for Front Panel USB Header with Intel Z-USB
54
BIOS Configuration Jumper Block
55
Location of the BIOS Configuration Jumper Block
55
BIOS Configuration Jumper Settings
56
Mechanical Considerations
57
Form Factor
57
Board Dimensions
57
Electrical Considerations
58
Fan Header Current Capability
58
Add-In Board Considerations
58
Thermal Considerations
58
Localized High Temperature Zones
59
Passive Heatsink Design in a Passive System Environment
60
Thermal Considerations for Components
60
Chassis Design Guideline
61
Fan Location Guide for Chassis Selection (Chassis Orientation Is Not Restricted)
62
Power Consumption
63
Minimum Load Configuration
63
Maximum Load Configuration
63
Minimum Load Configuration Current and Power Results
63
Reliability
64
Environmental
64
Maximum Load Configuration Current and Power Results
64
Intel Desktop Board D2550MUD2 Environmental Specifications
64
Overview of BIOS Features
65
Introduction
65
BIOS Flash Memory Organization
66
Resource Configuration
66
PCI* Autoconfiguration
66
BIOS Setup Program Menu Bar
66
BIOS Setup Program Function Keys
66
System Management BIOS (SMBIOS)
67
Legacy USB Support
68
BIOS Updates
69
BIOS Recovery
69
Acceptabledrives/Media Types for BIOS Recovery
69
Custom Splash Screen
70
Boot Options
70
Optical Drive Boot
70
Network Boot
70
Booting Without Attached Devices
71
Changing the Default Boot Device During POST
71
Adjusting Boot Speed
71
Peripheral Selection and Configuration
71
Boot Device Menu Options
71
BIOS Boot Optimizations
72
BIOS Security Features
73
Supervisor and User Password Functions
73
Board Status and Error Messages
75
BIOS Beep Codes
75
Front-Panel Power LED Blink Codes
76
BIOS Error Messages
76
Port 80H POST Codes
77
Port 80H POST Code Ranges
77
Port 80H POST Codes
78
Typical Port 80H POST Sequence
81
Regulatory Compliance and Battery Disposal Information
83
Regulatory Compliance
83
Safety Standards
83
European Union Declaration of Conformity Statement
84
Product Ecology Statements
85
EMC Regulations
87
ENERGY STAR* 5.0, E-Standby, and Erp Compliance
90
ENERGY STAR Requirements
90
Regulatory Compliance Marks (Board Level)
91
Regulatory Compliance Marks
91
Battery Disposal Information
92
