Intel Desktop Board D945GCL Product Guide
40
Removing the PCI Express x16 Card
Follow these instructions to remove the PCI Express x16 card from the connector:
1. Observe the precautions in "
Before You Begin" on page 25.
2. Remove the screw (
Figure 17, A) that secures the card’s metal bracket to the
chassis back panel.
3. Push back on the retention mechanism lever (
Figure 17, B) until the retention pin
completely clears the notch in the card.
4. Pull the card straight up (
Figure 17, C).

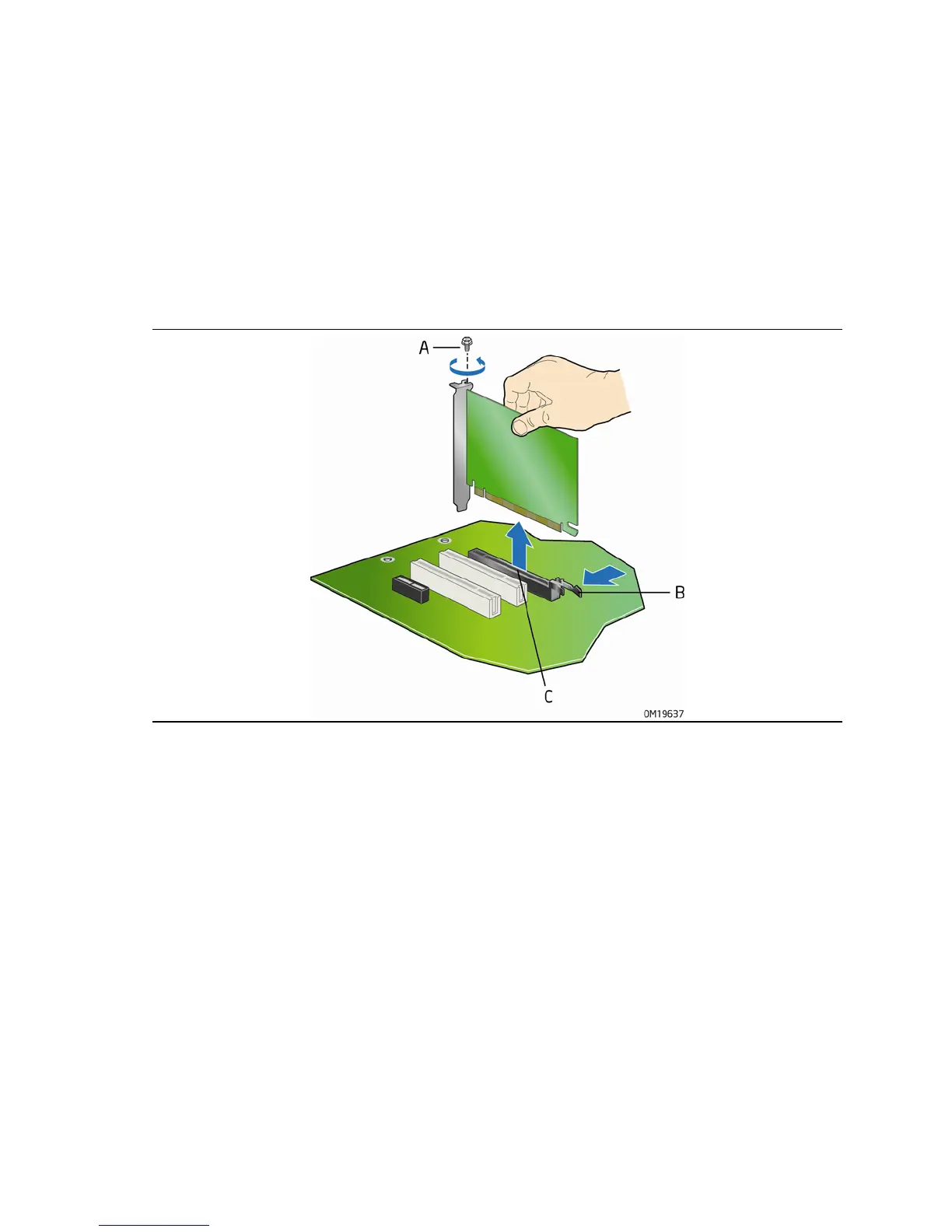

Figure 17. Removing a PCI Express x16 Card
