Intel Desktop Board D945GCPE Product Guide
28

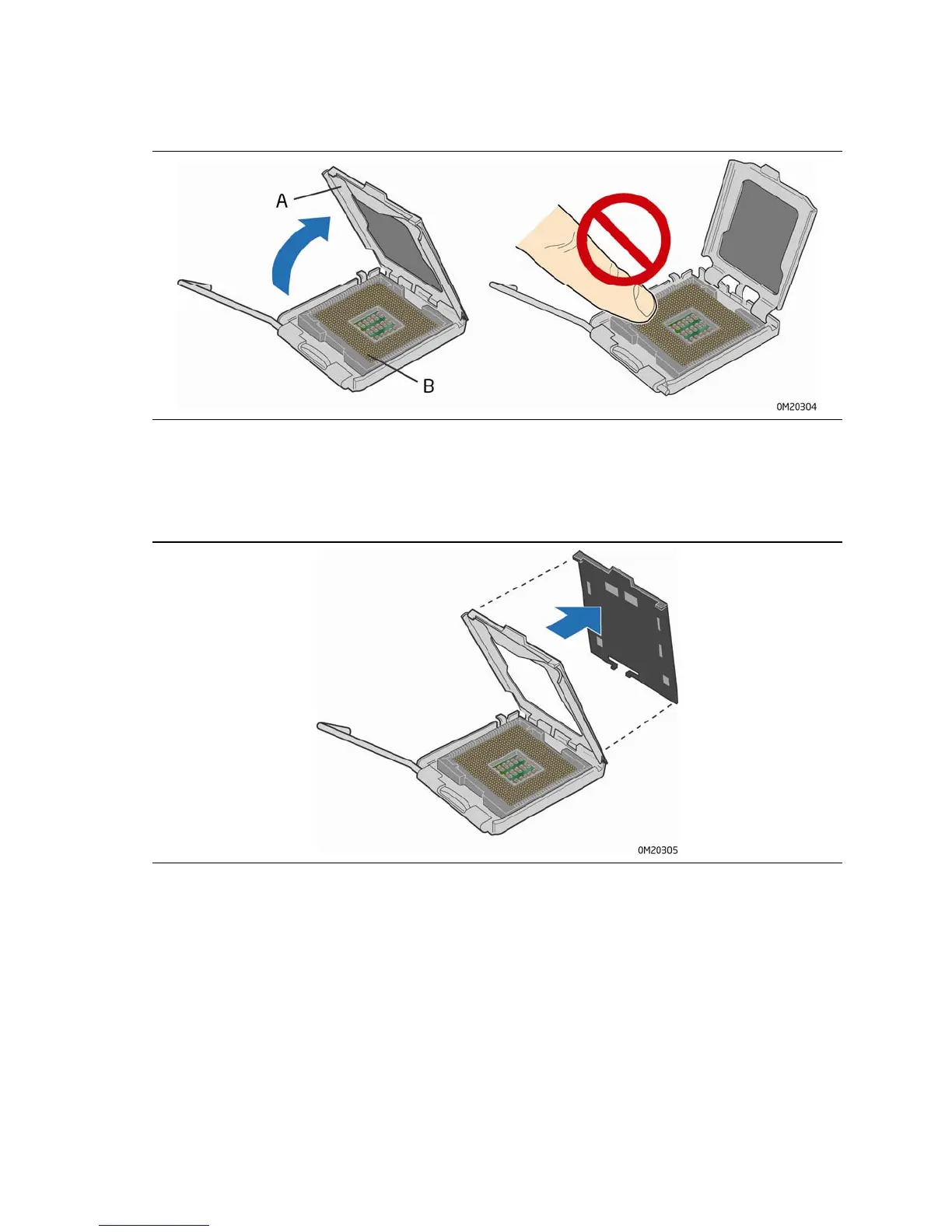

3. Lift the load plate (Figure 7, A). Do not touch the socket contacts (Figure 7, B).
Figure 7. Lift the Load Plate
4. Remove the plastic protective socket cover from the load plate (see Figure 8). Do
not discard the protective socket cover. Always replace the socket cover if the
processor is removed from the socket.
Figure 8. Remove the Protective Socket Cover

Intel D945GCPE - Desktop Board Motherboard Specifications

General

Form Factor	Micro ATX
Socket	LGA 775
Memory Type	DDR2
Memory Slots	2 x DIMM
Maximum Memory	2 GB
Graphics	Intel Graphics Media Accelerator 950
Expansion Slots	1 x PCIe x16, 2 x PCI
USB Ports	8 x USB 2.0
Chipset	Intel 945GC Express
Processor Support	Intel Pentium 4, Intel Pentium D, Intel Celeron D
Storage Interface	4 x SATA, 1 x PATA
