Installing and Replacing Desktop Board Components
33

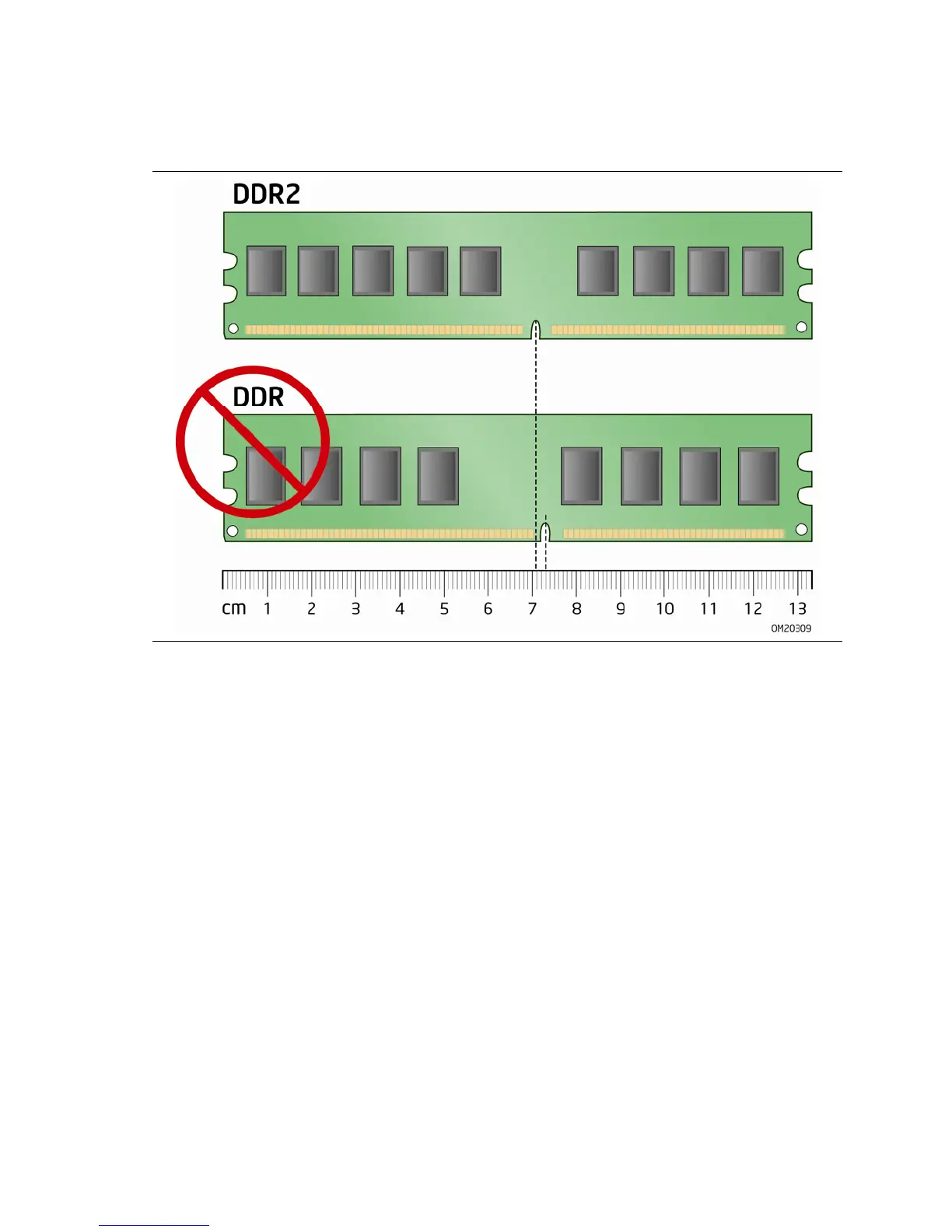

To make sure you have the correct DIMM, place it on the illustration of the DDR2
DIMM in Figure 14. All the notches should match with the DDR2 DIMM.
Figure 14. Use DDR2 DIMMs

Intel D945GCPE - Desktop Board Motherboard Specifications

General

Form Factor	Micro ATX
Socket	LGA 775
Memory Type	DDR2
Memory Slots	2 x DIMM
Maximum Memory	2 GB
Graphics	Intel Graphics Media Accelerator 950
Expansion Slots	1 x PCIe x16, 2 x PCI
USB Ports	8 x USB 2.0
Chipset	Intel 945GC Express
Processor Support	Intel Pentium 4, Intel Pentium D, Intel Celeron D
Storage Interface	4 x SATA, 1 x PATA
