Connecting the Serial ATA (SATA) Cable
The SATA cable supports the Serial ATA protocol and connects a single drive to the
desktop board. For correct cable function:
1. Observe the precautions in "Before You Begin" on page 23.
2. Attach the locking cable end to the
connector on the board (Figure 18, A).
3. Attach the cable end without the lock to the
drive (Figure 18, B).

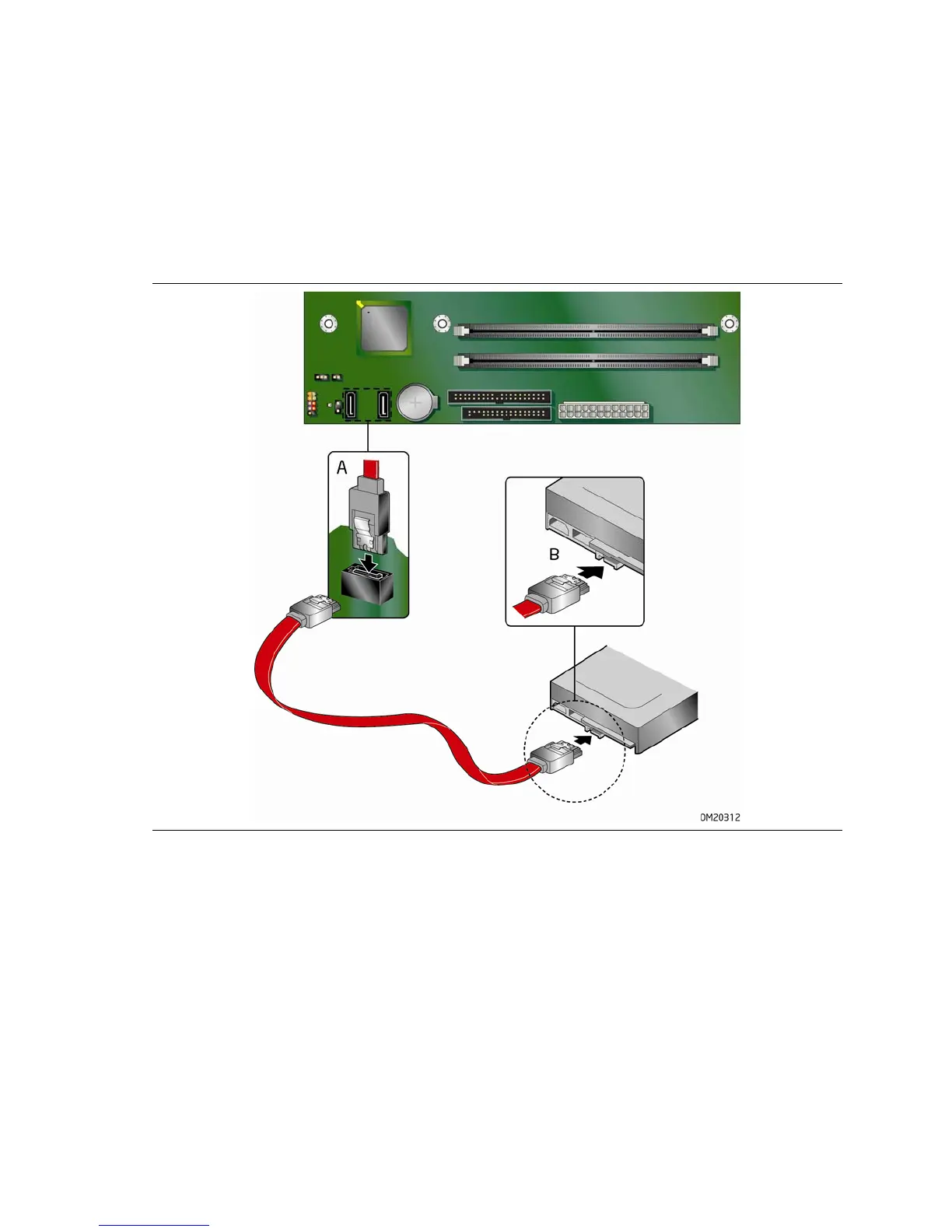

Figure 18. Connecting the Serial ATA Cable

Intel D945GCPE - Desktop Board Motherboard Specifications

General

Form Factor	Micro ATX
Socket	LGA 775
Memory Type	DDR2
Memory Slots	2 x DIMM
Maximum Memory	2 GB
Graphics	Intel Graphics Media Accelerator 950
Expansion Slots	1 x PCIe x16, 2 x PCI
USB Ports	8 x USB 2.0
Chipset	Intel 945GC Express
Processor Support	Intel Pentium 4, Intel Pentium D, Intel Celeron D
Storage Interface	4 x SATA, 1 x PATA
